Hydraulic Control & Air Pressure Relief Valves

Through our exclusive partnership with Bermad, Victaulic now offers innovative solutions for the control and management or water supply based systems in HVAC, Municipal Water, Fire Protection, and Industrial Utility & Processing. Click here for our Fire Protection line.

Designing water supply systems presents a unique set of challenges, all of which can be addressed by leveraging Bermad's product and technical expertise with Victaulic's extensive system knowledge and support.

40_HydraulicControlValves_Model-700
40_Actuator_700

Bermad Hydraulic Control Valves are expertly designed for unparalleled control, specifically control of variables such as pressure, flow, level, or on/off service.

Customizable trim configurations provide functionality without external power and enable a range of functions such as:

• Pressure Reducing        • Pressure Relief
• Pressure Sustaining      • Burst Control
• Pump Control



15 minutes vs 80 minutes - On-site service of Bermad valves is up to 8 times faster to perform over competitor valves due to the modular actuator assembly

  1. Double-chambered actuator provides rapid response to sudden changes in system conditions
  2. The Bermad “Y” pattern valve body is obstruction free, providing a 15% increased flow capacity over standard globe valves
  3. Bermad Air Valves protect your piping system from the dangers of air accumulation
  4. Variety of joining methods available to install on any pipe line
  5. Can be configured for use in a variety of systems including HVAC, Municipal Water, Fire Protection, or Industrial Utility & Processing
40_OperationDiagram_720

Hydraulic Control & Air Relief Valves Video Library

REQUEST A DEMO

THANK YOU FOR YOUR INTEREST IN VICTAULIC HYDRAULIC CONTROL & AIR PRESSURE RELIEF VALVES.

TO REQUEST A DEMO PLEASE FILL OUT THE FORM.

Request-a-Demo-Form (1)

VICTAULIC

4901 KESSLERSVILLE ROAD, EASTON, PA 18040

FOR U.S. CUSTOMERS, CALL 1.800.PICK.VIC (1.800.742.5842).

FOR CANADIAN CUSTOMERS, CONTACT YOUR SERVICING

      VICTAULIC BRANCH OR CALL (905) 884-7444.

HYDRAULIC CONTROL & AIR RELIEF VALVES PRODUCTS

  • All Products
  • Flow Control
  • Equipment Modules

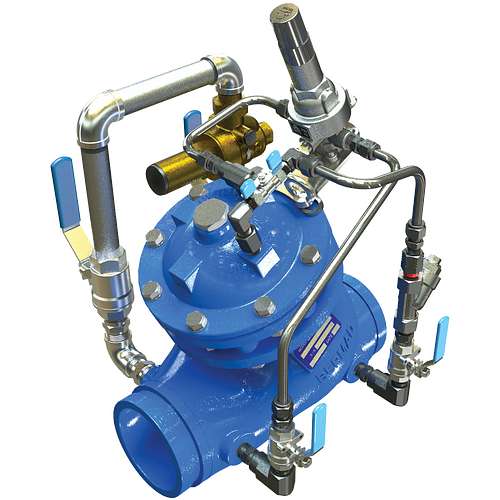

Series 972-2B Pressure Reducing Valve with Low-Flow Bypass
Series 972-2B Pressure Reducing Valve with Low-Flow Bypass
Series 972-2B Pressure Reducing Valve with Low-Flow Bypass
  • Victaulic Series 972-2B | Bermad Model BC-720-2B-P
  • Sizes from 1/2 - 8" | DN15 - DN200
  • Pressure up to 300 psi | 2038 kPa | 21 bar
  • Reduces higher upstream (inlet) pressure to lower downstream (outlet) pressure, regardless of fluctuating demand or varying upstream pressue
  • Bypass handles low flows when the main valve shuts off
  • Regional availability, contact Victaulic for details

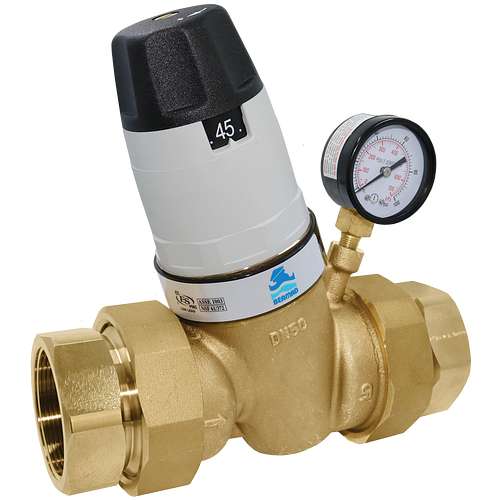

Series 935-H Direct Acting Pressure Reducing Valve
Series 935-H Direct Acting Pressure Reducing Valve
Series 935-H Direct Acting Pressure Reducing Valve
  • Victaulic Series 935-H | Bermad Model BC-CAP-P
  • Sizes from 1/2 - 2" | DN15 - DN50
  • Pressure up to 300 psi | 2038 kPa | 21 bar
  • Reduces higher upstream (inlet) pressure to lower downstream (outlet) pressure, regardless of fluctuating demand or varying upstream pressure
  • Regional availability, contact Victaulic for details

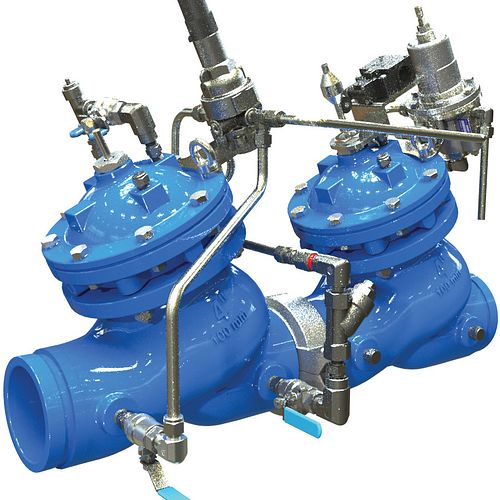

Series 972S-H Pressure Reducing System with “Watchdog” Valve
Series 972S-H Pressure Reducing System with “Watchdog” Valve
Series 972S-H Pressure Reducing System with “Watchdog” Valve
  • Victaulic Series 972S-H | Bermad Model BC-72S-H-P
  • Sizes from 1 ½ - 8” | DN40 – DN200
  • Pressure up to 400 psi | 2758 kPa |28 bar
  • Pressure safety solution for a pressure reducing valve (PRV) station
  • Protects downstream piping from experiencing unsafe excess pressures
  • Regional availability, contact Victaulic for details
Series 972 Pressure Reducing Valve
Series 972 Pressure Reducing Valve
Series 972 Pressure Reducing Valve
  • Victaulic Series 972 | Bermad Model BC-720-P (Ductile iron body)
  • Also available: Victaulic Series 972-SS (Stainless steel body)
  • Sizes from 1 ½ - 8” | DN40 - DN200
  • Pressure up to 400 psi | 2758 kPa |28 bar
  • Reduces higher upstream (inlet) pressure to lower constant downstream (outlet) pressure, regardless of fluctuating demand or varying upstream pressure
  • Regional availability, contact Victaulic for details

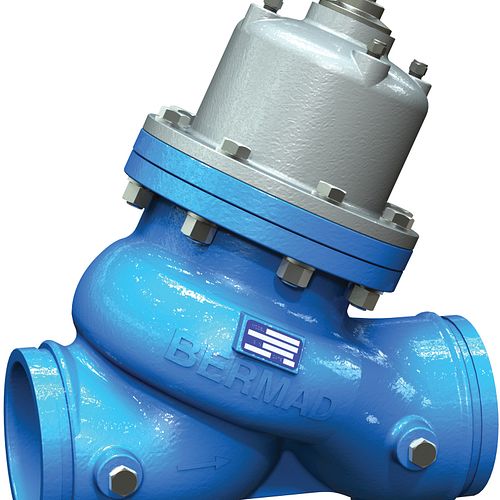

Series 972-PD Proportional Pressure Reducing Valve
Series 972-PD Proportional Pressure Reducing Valve
Series 972-PD Proportional Pressure Reducing Valve
  • Victaulic Series 972-PD | Bermad Model BC-720-PD-P – Pressure up to 400 psi | 2758 kPa |28 bar
  • Also available: Victaulic Series 982-PP | Bermad Model BC-820-PP-P – Pressure up to 600 psi | 4137 kPa | 41 bar
  • Sizes from 1 ½ - 8” | DN40 - DN200
  • Reduces higher upstream (inlet) pressure to lower constant downstream (outlet) pressure, regardless of fluctuating demand or varying upstream pressure
  • Regional availability, contact Victaulic for details
Series 386 Pressure Reducing Valve Stations
Series 386 Pressure Reducing Valve Stations
Series 386 Pressure Reducing Valve Stations
  • Fully integrated, ready-to-install pressure reducing valve (PRV) station
  • For use in potable water systems to reduce and control system pressures to specified safe levels, independent of upstream pressure and flow variations
  • Offered in six standard configurations (Series 386A, 386B, 386C, 386D, 386E, 386F)
  • Sizes from 1 1/2 - 6" | DN40 - DN150
  • Pressures up to 300 psi| 2068 kPa | 21 bar
  • Regional availability, contact Victaulic for details

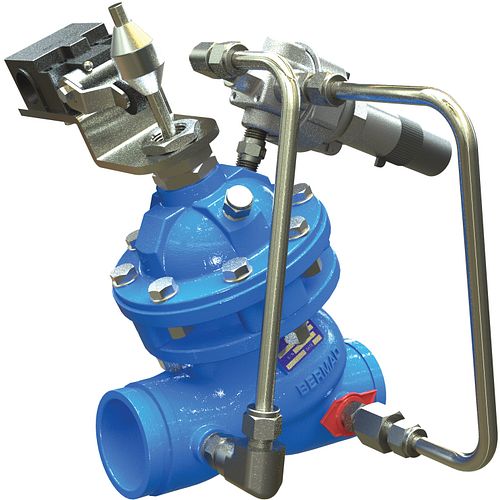

Series 973-Q Pressure Relief Valve
Series 973-Q Pressure Relief Valve
Series 973-Q Pressure Relief Valve
  • Victaulic Series 973-Q |Bermad Model BC-73Q-P – Pressure up to 250 psi | 1724 kPa | 17 bar
  • Also available: Victaulic Series 973-QHP – Pressure up to 400 psi | 2758 kPa |28 bar
  • Sizes from 1 ½ - 4” | DN40 - DN100
  • Pressure safety solution for a pressure reducing valve (PRV) station
  • Protects downstream piping from experiencing unsafe excess pressures
  • Regional availability, contact Victaulic for details

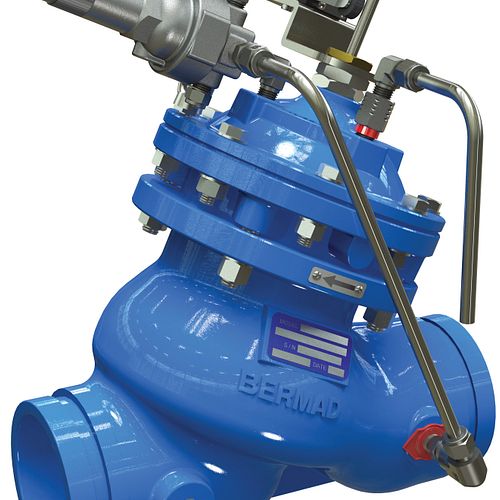

Series 979-4 Excessive Pressure Shut-Off Valve
Series 979-4 Excessive Pressure Shut-Off Valve
Series 979-4 Excessive Pressure Shut-Off Valve
  • Victaulic Series 979-4 |Bermad Model BC-794-P – Pressure up to 250 psi | 1724 kPa | 17 bar
  • Also available: Victaulic Series 979-4HP – Pressure up to 400 psi | 2758 kPa |28 bar
  • Sizes from 1 ½ - 8” | DN40 – DN200
  • Pressure safety solution for a pressure reducing valve (PRV) station
  • Protects downstream piping from experiencing unsafe excess pressures
  • Regional availability, contact Victaulic for details
Series 968-F Strainer
Series 968-F Strainer
Series 968-F Strainer
  • Victaulic Series 968-F | Bermad Model BC-70F-P (Ductile iron body) – Pressure up to 400 psi | 2758 kPa |28 bar
  • Also available: Victaulic Series 968-F-SS (Stainless steel body) – Pressure up to 400 psi | 2758 kPa |28 bar
  • Also available: Victaulic Series 969-F | Bermad Model BC-80F-P – Pressure up to 600 psi | 4137 kPa | 41 bar
  • Sizes from 1 ½ - 8” | DN40 - DN200
  • Protects the pipeline and valves from large foreign objects, such as sticks and stones
  • Install upstream from control valves, flow meters and other system components
  • Regional availability, contact Victaulic for details

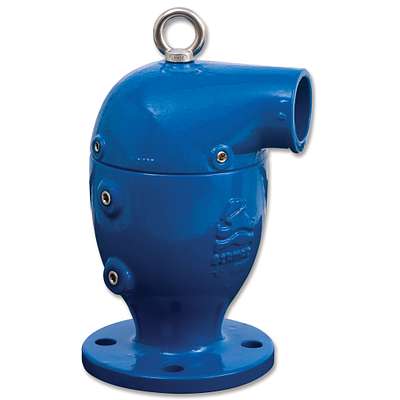

Bermad Model C70 | Victaulic Series 9C7 Air Valve
Bermad Model C70 | Victaulic Series 9C7 Air Valve
Bermad Model C70 | Victaulic Series 9C7 Air Valve
  • Combination air release valves release air bubbles from pressurized pipe lines (air release valve), while evacuating air during pipeline filling and draining (air/vacuum valve)
  • Body material: Ductile iron (standard)
  • Sizes from 2 – 8"| DN50 – DN200
  • Pressures up to 580 psi | 3999 kPa | 40 bar
  • Temperatures up to 140°F | 60°C
  • Regional availability, contact Victaulic for details

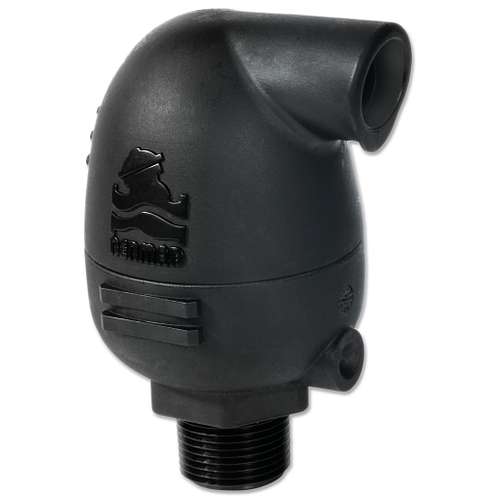

Bermad Model A30 | Victaulic Series 9A3 Air Valve
Bermad Model A30 | Victaulic Series 9A3 Air Valve
Bermad Model A30 | Victaulic Series 9A3 Air Valve
  • Automatic air release valves allow efficient release of air bubbles from pressurized pipe lines
  • Body material: Glass reinforced nylon
  • Sizes from ¾ – 1" | DN20 – DN25
  • Pressures up to 230 psi | 1586 kPa | 16 bar
  • Temperatures up to 140°F | 60°C
  • Regional availability, contact Victaulic for details
Bermad Model A71 | Victaulic Series 9A7 Air Valve
Bermad Model A71 | Victaulic Series 9A7 Air Valve
Bermad Model A71 | Victaulic Series 9A7 Air Valve
  • Automatic air release valves allow efficient release of air bubbles from pressurized pipelines
  • Body material: Type 316 stainless steel
  • Sizes from ¾ – 1" | DN20 – DN25
  • Pressures up to 350 psi | 2413 kPa | 24 bar
  • Temperatures up to 140°F | 60°C
  • Regional availability, contact Victaulic for details
Bermad Model C30 | Victaulic Series 9C3 Air Valve
Bermad Model C30 | Victaulic Series 9C3 Air Valve
Bermad Model C30 | Victaulic Series 9C3 Air Valve
  • Combination air release valves release air bubbles from pressurized pipelines while evacuating air during pipeline filling and draining
  • Body material: Glass reinforced nylon
  • Sizes from ¾ – 1" | DN20 – DN25
  • Pressures up to 230 psi | 1586 kPa | 16 bar
  • Temperatures up to 140°F | 60°C
  • Regional availability, contact Victaulic for details
Bermad Model C50 | Victaulic Series 9C5
Bermad Model C50 | Victaulic Series 9C5
Bermad Model C50 | Victaulic Series 9C5
  • Combination air release valves release air bubbles from pressurized pipelines, while evacuating air during pipeline filling and draining
  • Body Material: Glass-reinforced nylon
  • Sizes from 2 - 4"/DN50 - DN100
  • Pressures up to 150 psi/1034 kPa/10 bar
  • Temperatures up to 140°F/60°C
  • Regional availability, contact Victaulic for details

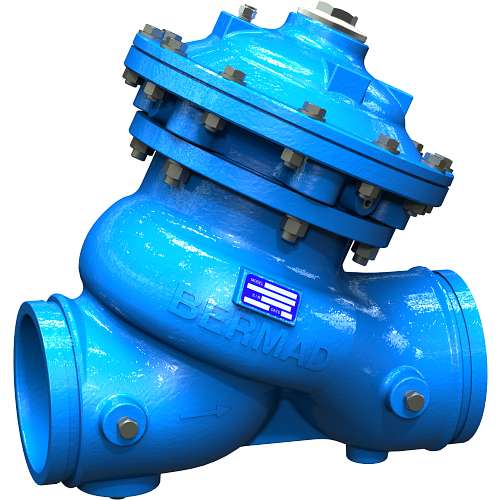

Bermad Series 700 | Victaulic Series 970
Bermad Series 700 | Victaulic Series 970
Bermad Series 700 | Victaulic Series 970
  • Hydraulic control valves are devices capable of controlling variables such as pressure, flow, or level
  • Optional configurations include: On/Off, Pressure Reducing, Pressure Relief, Pressure Sustaining, and Flow Control (Customized solutions can include combinations of the above functions)
  • Sizes from 1½ – 48" | DN40 – DN1200
  • Pressures up to 400 psi | 2758 kPa | 25 bar
  • Regional availability, contact Victaulic for details
Bermad Series 100 | Victaulic Series 910
Bermad Series 100 | Victaulic Series 910
Bermad Series 100 | Victaulic Series 910
  • Hydraulic control valves are devices capable of controlling variables such as pressure, flow, or level
  • Optional configurations include: On/Off, Pressure Reducing, Pressure Relief, Pressure Sustaining, and Flow Control (Customized solutions can include combinations of the above functions)
  • Sizes from 1½ – 6" | DN40 – DN150
  • Pressures up to 145 psi | 1000 kPa | 10 bar
  • Regional availability, contact Victaulic for details

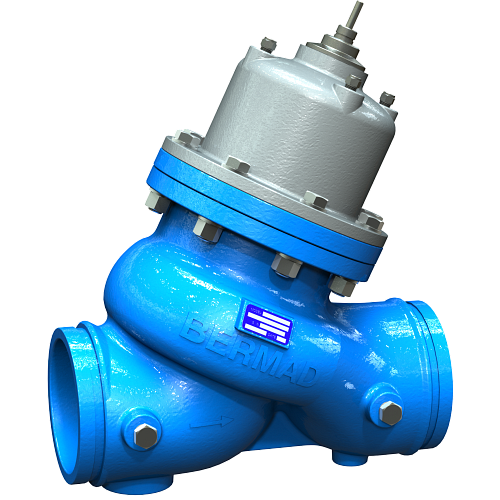

Bermad Series 800 | Victaulic Series 980
Bermad Series 800 | Victaulic Series 980
Bermad Series 800 | Victaulic Series 980
  • Hydraulic control valves are devices capable of controlling variables such as pressure, flow, or level
  • Optional configurations include: On/Off, Pressure Reducing, Pressure Relief, Pressure Sustaining, and Flow Control (Customized solutions can include combinations of the above functions)
  • Sizes from 1½ – 20" | DN40 – DN500
  • Pressures up to 600 psi | 4137 kPa | 41 bar
  • Regional availability, contact Victaulic for details

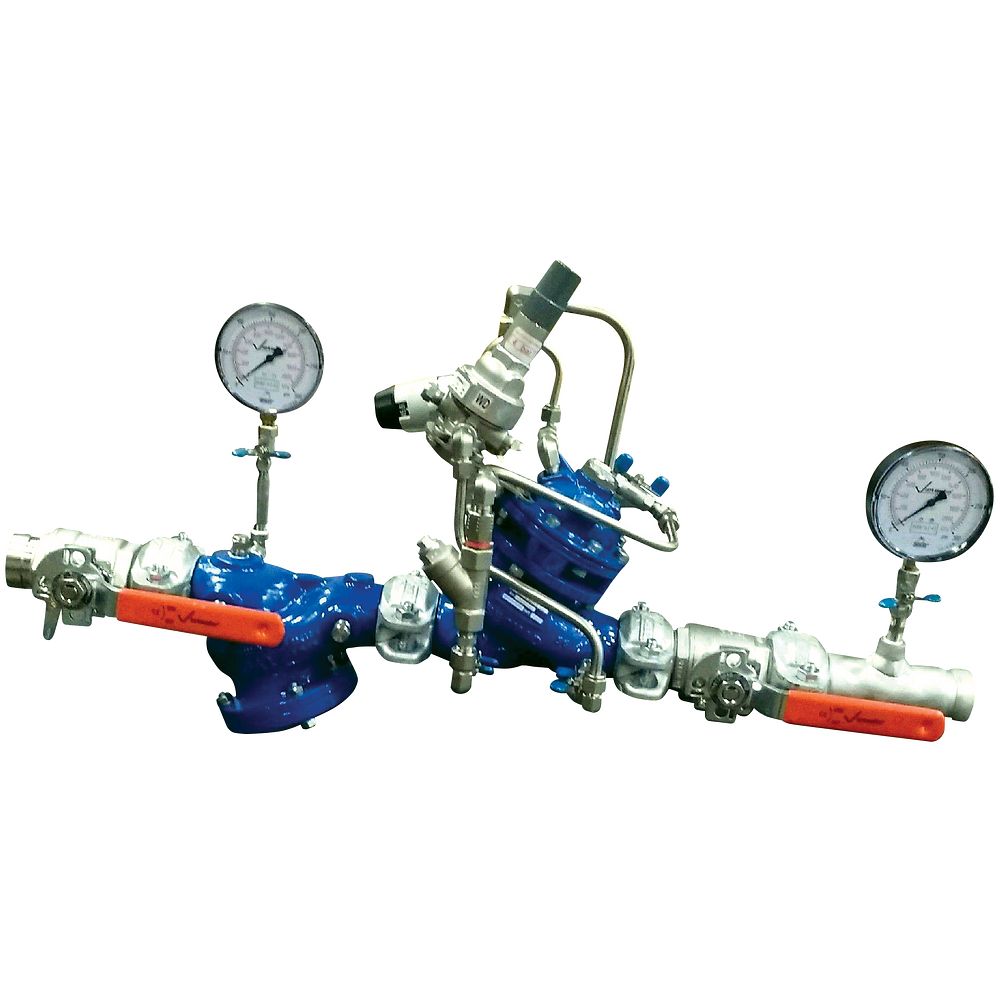

Series 386-SB Single Branch Pressure Reducing Valve Station
Series 386-SB Single Branch Pressure Reducing Valve Station
Series 386-SB Single Branch Pressure Reducing Valve Station
  • Ready-to-install single-branch pressure reducing station
  • For use in potable water systems to reduce and control system pressures to specified safe levels, independent of upstream pressure and flow variations
  • Typically used in tight-space installations where a standard Series 386 PRV Station may not fit; User still needs a low-flow bypass feature for optimum low-flow pressure control
  • Offered in four standard configurations (Series 386A-SB, Series 386B-SB, Series 386C-SB, and Series 386D-SB)
  • Sizes from 1 1/2 - 6" | DN40 - DN150
  • Pressures up to 300 psi | 2068 kPa | 21 bar
  • Regional availability, contact Victaulic for details

HYDRAULIC CONTROL & AIR RELIEF VALVES DOWNLOADS

  • All Resources
  • Submittal
  • Manuals
  • Technical & Design Data
  • Market Brochure
Resource Number Downloads Collection
Series 386 Pressure Reducing Valve (PRV) Stations Submittal 102.16
Series 386 Pressure Reducing Valve (PRV) Station Installation Instructions I-PRV
Series 386 PRV Station Schematics PB-PRVSTATION
Design Data - How to Choose Correct Number of Pressure Reduction Stages for Hydraulic Control Valves in Pressure Reducing Applications 26.22
Series 972/Model BC-720-P Pressure Reducing Valve Submittal Series 972/Model BC-720-P Submittal
Series 972/Model BC-720-P Pressure Reducing Valve IOM Series 972/Model BC-720-P IOM
Series 972-PD/Model BC-720-PD-P Proportional Pressure Reducing Valve Submittal Series-972-PD-Submittal
Series 972-PD/Model BC-720-PD-P Proportional Pressure Reducing Valve IOM Series 972-PD/Model BC-720-PD-P IOM
Series 973-Q/Model BC-73Q-P Pressure Relief Valve Submittal Series 973-Q/Model BC-73Q-P Submittal
Series 973-Q/Model BC-73Q-P Pressure Relief Valve IOM Series 973-Q/Model BC-73Q-P IOM
Series 979-4/Model BC-794-P Excessive Pressure Shut-Off Valve Submittal Series 979-4/Model BC-794-P Submittal
Series 979-4/Model BC-794-P Excessive Pressure Shut-Off Valve IOM Series 979-4/Model BC-794-P IOM
Series 972S-H/Model BC-72S-H-P Pressure Reducing System Submittal Series 972S-H/Model BC-72S-H-P Submittal
Series 972S-H/Model BC-72S-H-P Pressure Reducing System IOM Series 972S-H/Model BC-72S-H-P IOM
Series 972-2B/Model BC-720-2B-P Pressure Reducing Valve with Low-Flow Bypass Submittal Series 972-2B Submittal
Series 972-2B/Model BC-720-2B-P Pressure Reducing Valve with Low-Flow Bypass IOM Series 972-2B IOM
Series 935-H/Model BC-CAP-P Direct Acting Pressure Reducing Valve Submittal Series 935-H Submittal
Series 935-H/Model BC-CAP-P Direct Acting Pressure Reducing Valve IOM IOM Series 935-H_Model BC-CAP-P
Bermad™ Series 800 Hydraulic Control Valve Data Sheet Submittal Series 800 Data Sheet
Bermad™ Series 700 Hydraulic Control Valve Data Sheet Submittal Series 700 Data Sheet
Bermad™ Series 100 Hydraulic Control Valve Data Sheet Submittal Series 100 Data Sheet
Bermad™ Model C70 Combination Air Valve Data Sheet Submittal C70 Data Sheet
Bermad™ Model C50 Combination Air Valve Data Sheet Submittal C50 Data Sheet
Bermad™ Model C30 Combination Air Valve Data Sheet Submittal C30 Data Sheet
Bermad™ Model A71 Automatic Air Release Valve Data Sheet Submittal A71 Data Sheet
Bermad™ Model A30 Automatic Air Release Valve Data Sheet Submittal A30 Data Sheet
Series 972S-2B-H/Model BC-72S-2B-H-P Watchdog PRV Combo with Integrated Low-Flow Bypass IOM Series 972S-2B-H/Model BC-72S-2B-H-P IOM
Series 972S-2B-H/Model BC-72S-2B-H-P Watchdog PRV Combo with Integrated Low-Flow Bypass Submittal Series 972S-2B-H/Model BC-72S-2B-H-P Submittal
Total Water Management Solutions for the Mining Industry PB-HCV
Pressure Control Solutions for Potable Water PB-199
Series 971/Model BC-710-P Solenoid Controlled Valve Submittal Series 971 Submittal
