Revolutionizing Constructability With Modular Ductile Iron Piping
Victaulic is redefining how ductile iron systems are built. Our modular approach brings off-site precision, quality assurance, and schedule certainty to a market long reliant on traditional field assembly, delivering the same efficiency and consistency once reserved for carbon and stainless-steel systems.
Modularization Capabilities
VDC
Victaulic's global VDC team utilizes BIM and Revit tools to design piping systems that minimize on-site assemblies, reduce installation time, and improve project schedules.
Off-Site Modularization
Piping systems are preassembled in controlled environments and delivered as modular units, reducing material handling and maximizing jobsite productivity.
IPD
Victaulic offers a full suite of Integrated Project Delivery (IPD) services, including BIM, estimation, preassembly, and field construction to assist with potential new projects.
Benefits
Faster Installation
Victaulic's grooved ductile iron systems install up to 10x faster than traditional flanged welding methods.
LABOR EFFICIENCY
Reduce on-site handling and eliminate loose fittings with preassembled spools.
Safety
Modular assemblies reduce loose fittings by up to 70%, ensuring fewer lifts, lighter assemblies, and less risk of injury.
QUALITY ASSURANCE
Every joint inspected and verified under controlled factory conditions.
SCHEDULE PERFORMANCE
Accelerate installs with site-ready solutions and just-in-time delivery.
MATERIAL MANAGEMENT
Bag-and-tag delivery services minimize misplaced materials and delays.

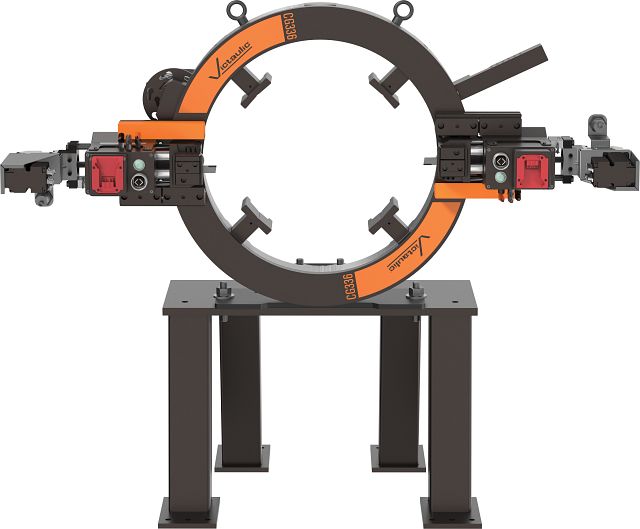

CG336 Portable Cut Grooving Tool
Victaulic’s CG336 Portable Cut Grooving Tool bridges design and installation, allowing contractors to cut and groove ductile iron pipe from 3" to 36" directly on site. This flexibility ensures seamless field adjustments on every project.
• Grooving Capability: 3-36″ AWWA ductile iron pipe
• Modular field fabrication cut grooving tool
• Designed to simultaneously square cut and groove ductile iron pipe ends
• Hands-free operation with auto-feed cutting and grooving bits and safety foot switch
• External mounting and drive action designed for use with all coating and lining types
Projects
Literature
| Resource | Number | Downloads | Collection |
|---|---|---|---|
| CG336 Portable Cut Grooving Tool Repair Parts | RP-CG336 |
|
|
| Virtual Design and Construction (VDC) | MB-105 |
|
|
| Radius Cut Groove Specifications (Rigid/Flexible) | 25.05 |
|
|
| Style 31 AWWA™ Coupling Submittal | 23.02 |
|
|
| AWWA (Cast) Fittings Submittal | 23.05 |
|
|
| Style 257C Dynamic Movement Joint Submittal | 23.17 |
|
|
| Series 365 (D.I. ENDS) AWWA Plug Valves Submittal | 23.06 |
|
|
| Series 317 AWWA Check Valve Submittal | 23.09 |
|
|
| Style 307 AWWA™ Transition Coupling Submittal | 23.03 |
|
|
| No. 326C AWWA Manifold Fitting Submittal | 23.23 |
|
|
| AWWA Field Installation Handbook | I-300 |
|
|
| AWWA Grooved System Design Data | 23.01 |
|
Content Library
View & download Victaulic content files for BIM piping software, including Autodesk - AutoCAD 2D, 3D Blocks & Plant 3D; Autodesk - Revit MEP; Autodesk - Fabrication CADmep; Bentley AutoPlant; CEA Systems - Plant 4D; Trimble - PipeDesigner 3D, DWG & more. Download available for individual files & full package zip files.
