Dry Sprinkler Systems Solutions

Nowadays dry pipe fire sprinkler systems come in all shapes and sizes, but the main function is still avoiding pipe freeze-ups and system impairments while providing uncompromising fire protection. Evidenced in research and development in the area of dry pipe sprinkler systems, it is clear Victaulic is committed to increased safety, convenience and design flexibility.







learn more at vicflex.com

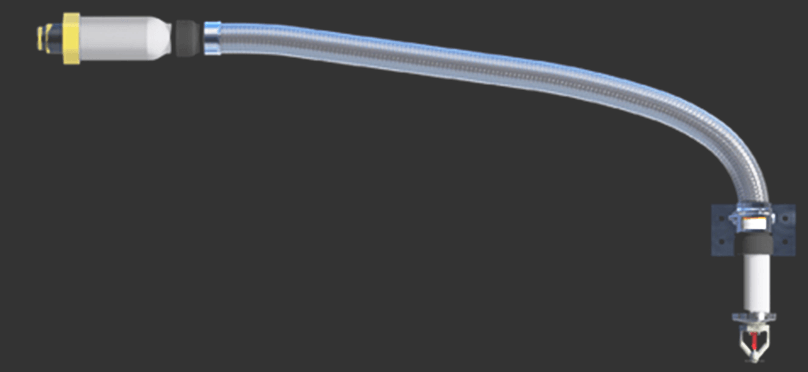

41_vs1_specb

Hear it from the Assistant Fire Marshall for the City of Raleigh, North Carolina, Steve Berry - “Education and following NFPA Code is key to keeping lives safe and property intact. With new Victaulic solutions, every dry sprinkler concern I’ve had in the past has been answered.”

Victaulic offers a wide array of dry pipe sprinkler system solutions:

• Traditional FireLock™ V33 and V36 dry fire sprinkler systems

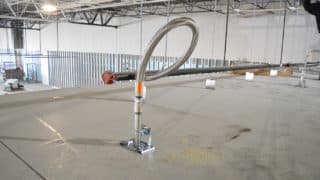

• V36 dry fire sprinkler system with integral VicFlex™ Series AB6 Cold Storage Assembly
• VicFlex™ Model VS1 Dry Fire Sprinkler

Dry Pipe Sprinkler Systems Video Library

REQUEST A DEMO

THANK YOU FOR YOUR INTEREST IN VICTAULIC DRY SPRINKLER SYSTEMS SOLUTIONS TO REQUEST A DEMO PLEASE FILL OUT THE FORM.

Construction workers shaking hands

VICTAULIC (ALTERNATE CONTACT)

4901 KESSLERSVILLE ROAD, EASTON, PA 18040

FOR U.S. CUSTOMERS, CALL 1.800.PICK.VIC (1.800.742.5842).

FOR CANADIAN CUSTOMERS, CONTACT YOUR SERVICING

       VICTAULIC BRANCH OR CALL (905) 884-7444.

DRY PIPE FIRE SPRINKLER PRODUCTS

  • All Products
  • Fire Sprinklers
  • Fittings
VicFlex™ Style AB6 Assembly – Cold Storage
VicFlex™ Style AB6 Assembly – Cold Storage
VicFlex™ Style AB6 Assembly – Cold Storage
  • Dry Sprinklers Available: V33, V36 or V40
  • Hoses Available: Series AH2-CC, Series AH2
  • Cold storage applications
  • Combats differential movement. Industry-leading seal integrity stays intact, protecting against condensation.
  • Simple, one-person installation. Fits any ceiling or wall thickness with an easy indication of vertical and frame arm alignment from above.
VicFlex™ Dry Sprinkler Style VS1
VicFlex™ Dry Sprinkler Style VS1
VicFlex™ Dry Sprinkler Style VS1
 Confidence: Meets NFPA 13 installation requirements Speed: Eliminate custom field measurements with the convenience of standard stock Performance: Three convenient lengths and tight bend radius means aesthetically preferred pendent installations are a reality.
  • cULus Listed
  • K5.6 Commercial
  • Quick and Standard Response
  3 Lengths:
  • 38" / 955mm
  • 50" / 1270mm
  • 58" / 1475mm
  Sprinkler Configurations:
  • Flat Plate Concealed Pendent
  • Recessed Pendent
  • Sleeve and Skirt Pendent
  • Recessed Sidewall
  • Sleeve and Skirt Sidewall
FIRELOCK™ MODEL FL-SR/DRY/C, DRY TYPE, STANDARD RESPONSE, CONCEALED PENDENT V3301 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-SR/DRY/C, DRY TYPE, STANDARD RESPONSE, CONCEALED PENDENT V3301 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-SR/DRY/C, DRY TYPE, STANDARD RESPONSE, CONCEALED PENDENT V3301 – K5.6 (8.1 SI)
  • Dry
  • Light | Ordinary
  • K5.6 | S.I.8.1
  • Concealed Pendent
  • Standard Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200° (F)
  • 57°, 68°, 93° (C)
  • cULus
  • Brass, Chrome, White, Black, Custom
  • 175 psi | 12 bar
  • Wrenches: V33
FireLock™ Model FL-QR/DRY/C, Dry Type, Quick Response, Concealed Pendent V3302 – K5.6 (8.1 SI)
FireLock™ Model FL-QR/DRY/C, Dry Type, Quick Response, Concealed Pendent V3302 – K5.6 (8.1 SI)
FireLock™ Model FL-QR/DRY/C, Dry Type, Quick Response, Concealed Pendent V3302 – K5.6 (8.1 SI)
  • Dry
  • Light | Ordinary
  • K5.6 | 8.1 SI
  • Concealed Pendent
  • Quick Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200° (F)
  • 57°, 68°, 93° (C)
  • cULus
  • Brass, Chrome, White, Black, Custom
  • 175 psi | 12 bar
  • Wrenches: V33
FIRELOCK™ MODEL FL-SR/DRY/C, DRY TYPE, STANDARD RESPONSE, CONCEALED PENDENT V3303 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-SR/DRY/C, DRY TYPE, STANDARD RESPONSE, CONCEALED PENDENT V3303 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-SR/DRY/C, DRY TYPE, STANDARD RESPONSE, CONCEALED PENDENT V3303 – K8.0 (11.5 SI)
  • Dry
  • Light | Ordinary
  • K8.0 | S.I.11.5
  • Concealed Pendent
  • Standard Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200° (F)
  • 57°, 68°, 93° (C)
  • cULus
  • Brass, Chrome, White, Black, Custom
  • 175 psi | 12 bar
  • Wrenches: V33
FIRELOCK™ MODEL FL-QR/DRY/C, DRY TYPE, QUICK RESPONSE, CONCEALED PENDENT V3304 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-QR/DRY/C, DRY TYPE, QUICK RESPONSE, CONCEALED PENDENT V3304 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-QR/DRY/C, DRY TYPE, QUICK RESPONSE, CONCEALED PENDENT V3304 – K8.0 (11.5 SI)
  • Dry
  • Light | Ordinary
  • K8.0 | S.I.11.5
  • Concealed Pendent
  • Quick Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200° (F)
  • 57°, 68°, 93° (C)
  • cULus
  • Brass, Chrome, White, Black, Custom
  • 175 psi | 12 bar
  • Wrenches: V33
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, UPRIGHT V3601 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, UPRIGHT V3601 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, UPRIGHT V3601 – K5.6 (8.1 SI)
  • Dry
  • Light | Ordinary | Extra | Storage
  • K5.6 | S.I.8.1
  • Upright
  • Standard Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°, 141° (C)
  • cULus, FM
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, UPRIGHT V3602 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, UPRIGHT V3602 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, UPRIGHT V3602 – K5.6 (8.1 SI)
  • Dry
  • Light | Ordinary | Extra | Storage
  • K5.6 | S.I.8.1
  • Upright
  • Quick Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°, 141°(C)
  • cULus, FM
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, UPRIGHT V3603 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, UPRIGHT V3603 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, UPRIGHT V3603 – K8.0 (11.5 SI)
  • Dry
  • Light | Ordinary | Extra | Storage
  • K8.0 | S.I.11.5
  • Upright
  • Standard Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°,  141°(C)
  • cULus, FM
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, PENDENT AND RECESSED PENDENT V3605 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, PENDENT AND RECESSED PENDENT V3605 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, PENDENT AND RECESSED PENDENT V3605 – K5.6 (8.1 SI)
  • Dry
  • Light | Ordinary | Extra | Storage
  • K5.6 | S.I.8.1
  • Pendent
  • Standard Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°,  141°(C)
  • cULus, FM
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, PENDENT AND RECESSED PENDENT V3607 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, PENDENT AND RECESSED PENDENT V3607 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-SR/DRY, DRY TYPE, STANDARD RESPONSE, PENDENT AND RECESSED PENDENT V3607 – K8.0 (11.5 SI)
  • Dry
  • Light | Ordinary | Extra | Storage
  • K8.0 | S.I.11.5
  • Pendent
  • Standard Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°,  141°(C)
  • cULus, FM
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, PENDENT AND RECESSED PENDENT V3608 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, PENDENT AND RECESSED PENDENT V3608 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, PENDENT AND RECESSED PENDENT V3608 – K8.0 (11.5 SI)
  • Dry
  • Light | Ordinary | Extra | Storage
  • K8.0 | S.I.11.5
  • Pendent
  • Quick Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°,  141°(C)
  • cULus, FM
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, PENDENT AND RECESSED PENDENT V3606 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, PENDENT AND RECESSED PENDENT V3606 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, PENDENT AND RECESSED PENDENT V3606 – K5.6 (8.1 SI)
  • Dry
  • Light | Ordinary | Extra | Storage
  • K5.6 | S.I.8.1
  • Pendent
  • Quick Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°,  141°(C)
  • cULus, FM
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, UPRIGHT V3604 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, UPRIGHT V3604 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-QR/DRY, DRY TYPE, QUICK RESPONSE, UPRIGHT V3604 – K8.0 (11.5 SI)
  • Dry
  • Light | Ordinary | Extra | Storage
  • K8.0 | S.I.11.5
  • Upright
  • Quick Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°,  141°(C)
  • cULus, FM
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36
FIRELOCK™ MODEL FL-SR/DRY/SW, DRY TYPE, STANDARD RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3609 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-SR/DRY/SW, DRY TYPE, STANDARD RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3609 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-SR/DRY/SW, DRY TYPE, STANDARD RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3609 – K5.6 (8.1 SI)
  • Dry
  • Light Hazard
  • K5.6 | S.I.8.1
  • Horizontal Sidewall
  • Standard Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°,  141°(C)
  • cULus, FM
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36
FIRELOCK™ MODEL FL-QR/DRY/SW, DRY TYPE, QUICK RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3610 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-QR/DRY/SW, DRY TYPE, QUICK RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3610 – K5.6 (8.1 SI)
FIRELOCK™ MODEL FL-QR/DRY/SW, DRY TYPE, QUICK RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3610 – K5.6 (8.1 SI)
  • Dry
  • Light Hazard
  • K5.6 | S.I.8.1
  • Horizontal Sidewall
  • Quick Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°,  141°(C)
  • cULus, FM
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36
FIRELOCK™ MODEL FL-SR/DRY/SW, DRY TYPE, STANDARD RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3611 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-SR/DRY/SW, DRY TYPE, STANDARD RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3611 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-SR/DRY/SW, DRY TYPE, STANDARD RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3611 – K8.0 (11.5 SI)
  • Dry
  • Light | Ordinary
  • K8.0 | S.I.11.5
  • Horizontal Sidewall
  • Standard Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°,  141°(C)
  • cULus
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36
FIRELOCK™ MODEL FL-QR/DRY/SW, DRY TYPE, QUICK RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3612 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-QR/DRY/SW, DRY TYPE, QUICK RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3612 – K8.0 (11.5 SI)
FIRELOCK™ MODEL FL-QR/DRY/SW, DRY TYPE, QUICK RESPONSE, HORIZONTAL SIDEWALL AND RECESSED HORIZONTAL SIDEWALL V3612 – K8.0 (11.5 SI)
  • Dry
  • Light | Ordinary
  • K8.0 | S.I.11.5
  • Horizontal Sidewall
  • Quick Response
  • 1" | 25 mm NPT
  • 135°, 155°, 200°, 286° (F)
  • 57°, 68°, 93°,  141°(C)
  • cULus
  • Brass, Chrome, White, Black, Custom, VC-250
  • 175 psi | 12 bar
  • Wrenches: V36

DRY PIPE SPRINKLER SYSTEM DOWNLOADS

  • All Resources
  • Submittal
  • Manuals
  • Discontinued Product Support
Resource Number Downloads Collection
VicFlex™ Style AB6 Assembly – Cold Storage Installation Manual – REV E. I-VICFLEX-AB6-REVE
VicFlex™ Dry Sprinkler Style VS1 Installation Manual I-VICFLEX-VS1
FireLock™ Automatic Sprinklers Installation Manual I-40
VicFlex™ Dry Sprinkler Style VS1 Submittal 10.91
VicFlex™ Style AB6 Assembly – Cold Storage Submittal 10.90
