System Solution for Joining PVC / CPVC Pipe

Eliminate the cure time, chemicals and odors associated with the traditional installation method for CPVC / PVC pipe with the industry’s first grooved solution



  • Available in 2 – 12”/DN50 – DN300 sizes
  • Rigid, transition and reducing couplings for use on PGS-300 grooved end CPVC pipe
  • PGS-300 grooved end Schedule 80 molded fittings
  • Lightweight CG1100 cut grooving tool; Shop and field ready
  • Fastest, cleanest method to install CPVC / PVC pipe
  • Eliminates cure time, chemicals and odors associated with traditional CPVC / PVC pipe installation method
PGS-300-Logo-reverse-2

Industry’s first and only grooved solution designed specifically for use on 2 – 12” chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring Victaulic’s new PGS-300 groove profile

system solution for joining pvc/cpvs pipe video library

REQUEST A DEMO

THANK YOU FOR YOUR INTEREST IN VICTAULIC SYSTEM SOLUTION FOR JOINING PVC / CPVC PIPE

TO REQUEST A DEMO PLEASE FILL OUT THE FORM.

Request-a-Demo-Form (1)

VICTAULIC

4901 KESSLERSVILLE ROAD, EASTON, PA 18040

FOR U.S. CUSTOMERS, CALL 1.800.PICK.VIC (1.800.742.5842).

FOR CANADIAN CUSTOMERS, CONTACT YOUR SERVICING

        VICTAULIC BRANCH OR CALL (905) 884-7444.

"*" indicates required fields

SYSTEM SOLUTION FOR CPVC PIPE: PRODUCTS

  • All Products
  • Pipe Joining
  • Fittings

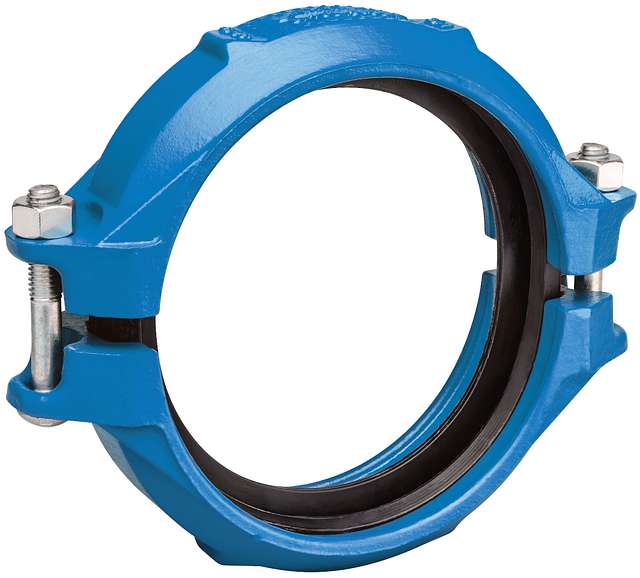

Installation-Ready™ Style 857 Rigid Coupling For CPVC/PVC Pipe In Potable Water Applications
Installation-Ready™ Style 857 Rigid Coupling For CPVC/PVC Pipe In Potable Water Applications
Installation-Ready™ Style 857 Rigid Coupling For CPVC/PVC Pipe In Potable Water Applications
  • Designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic PGS-300 groove profile
  • Utilizes Grade P gasket material for improved resistance to typical potable water disinfectants
  • Sizes from 2 – 12"/DN50 – DN300
  • Refer to the submittal for maximum pressure ratings and temperature reduction factors
  • Provides a rigid pipe joint designed to restrict axial and angular movement.
  • Regional availability, contact Victaulic for details

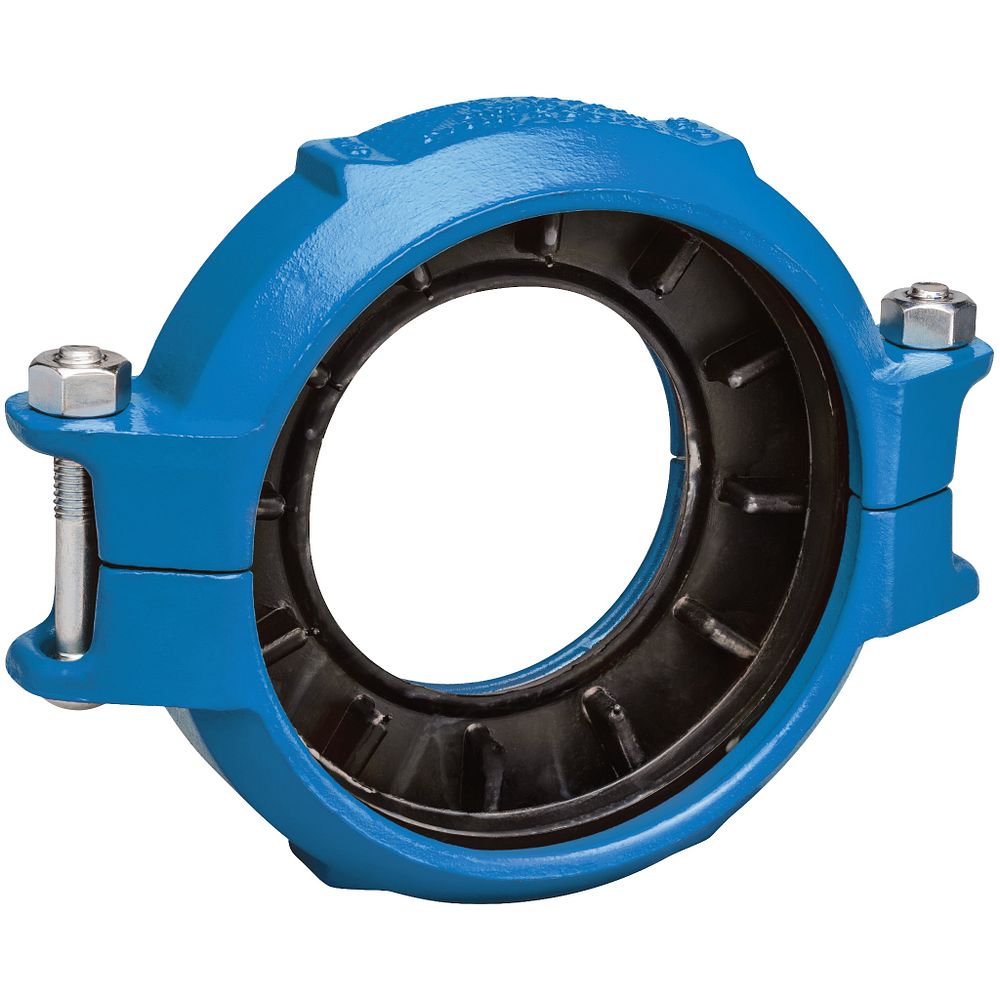

Style 858 Reducing Coupling for CPVC/PVC Pipe in Potable Water Applications
Style 858 Reducing Coupling for CPVC/PVC Pipe in Potable Water Applications
Style 858 Reducing Coupling for CPVC/PVC Pipe in Potable Water Applications
  •  Designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic PGS-300 groove profile
  • Utilizes Grade P gasket material for improved resistance to typical potable water disinfectants
  • Sizes from 2 ½ x 2" to 10 x 8" | 73.0 x 60.3 mm to 273.0 x 219.1 mm
  • Refer to the submittal for maximum pressure ratings and temperature reduction factors
  • Permits direct reduction on piping run
  • Regional availability, contact Victaulic for details

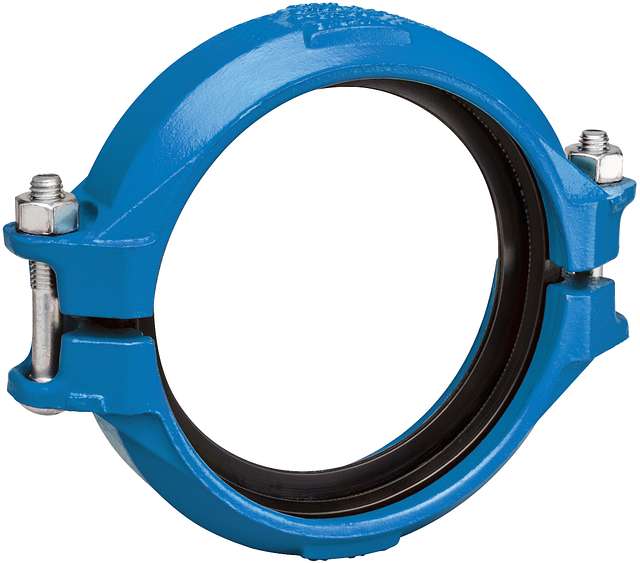

Installation-Ready™ Style 856 Transition Coupling for CPVC/PVC Pipe in Potable Water Applications
Installation-Ready™ Style 856 Transition Coupling for CPVC/PVC Pipe in Potable Water Applications
Installation-Ready™ Style 856 Transition Coupling for CPVC/PVC Pipe in Potable Water Applications
  • Designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic PGS-300 groove profile
  • Utilizes Grade P gasket material for improved resistance to typical potable water disinfectants
  • Sizes from 2 – 12"/DN50 – DN300
  • Refer to the submittal for maximum pressure ratings and temperature reduction factors
  • Provides a direct, single coupling connection for PGS-300 grooved end CPVC/PVC pipe or fittings to Original Groove System (OGS) grooved end carbon steel or stainless steel pipe, fittings or valves of the same nominal size.
  • Regional availability, contact Victaulic for details

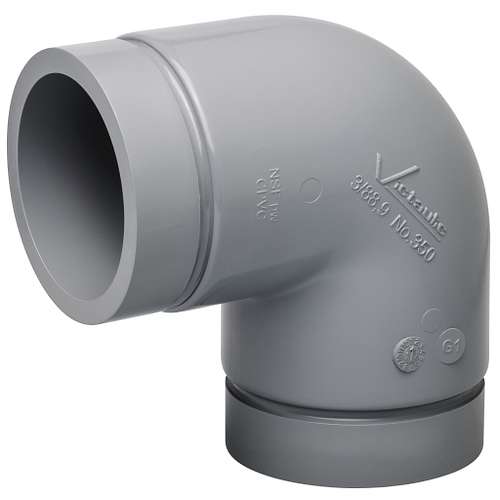

PGS-300™ Grooved End Fittings
PGS-300™ Grooved End Fittings
PGS-300™ Grooved End Fittings
  • Designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic PGS-300 groove profile
  • Sizes from 2 - 12"/DN50 - DN300
  • Refer to the submittal for maximum pressure ratings and temperature reduction factors
  • Regional availability, contact Victaulic for details

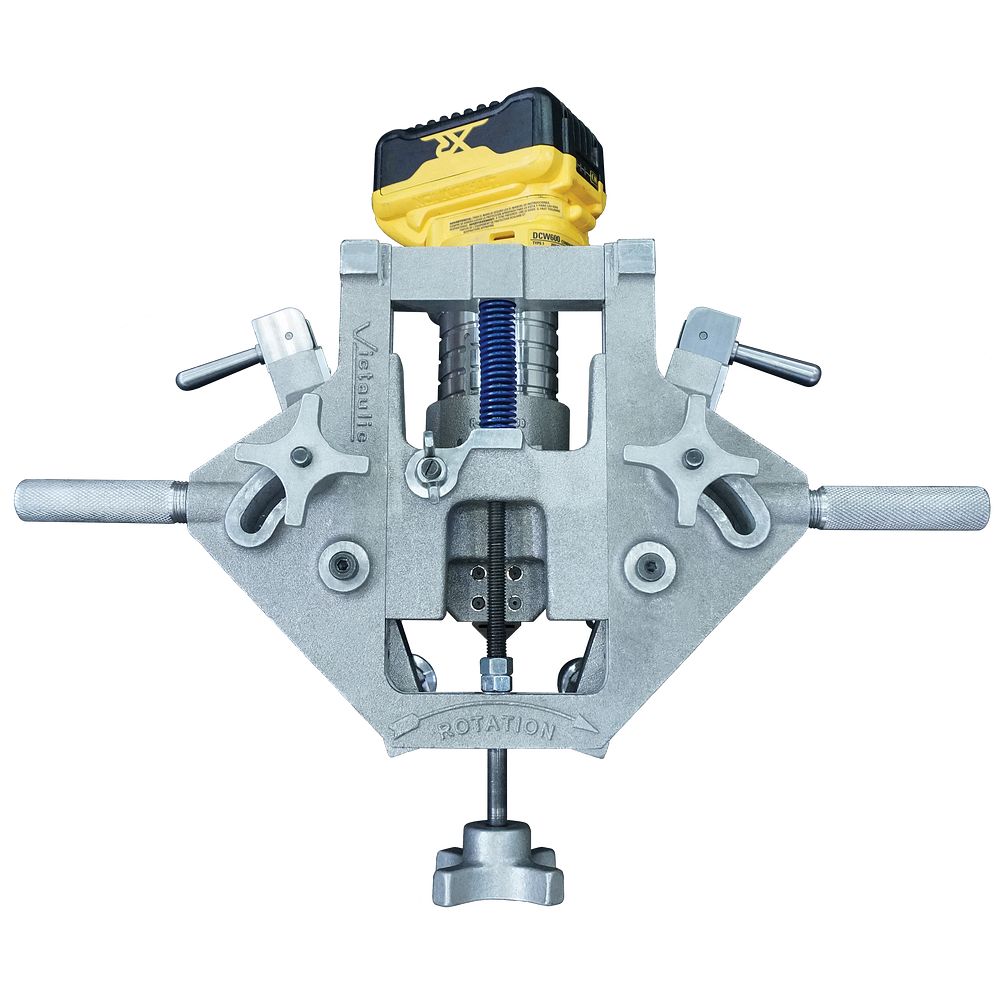

CG1100 Cut Grooving Tool
CG1100 Cut Grooving Tool
CG1100 Cut Grooving Tool
  • 2 - 12"/DN50 - DN300
  • Portable light weight field or shop fabrication tool
  • Designed to provide a radius PGS-300 cut groove in Schedule 40 - 80 CPVC/PVC pipe
PGS-300™ Style 355 Expansion Joint For CPVC/PVC Pipe
PGS-300™ Style 355 Expansion Joint For CPVC/PVC Pipe
PGS-300™ Style 355 Expansion Joint For CPVC/PVC Pipe
  • Style 355 – Intended for use in non-potable water systems
  • Style 355P – Intended for use in potable water systems
  • Designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic PGS-300 groove profile
  • Accommodates axial movement associated with expansion and contraction
  • Sizes from 2 – 12″/DN50 – DN300
  • Refer to the submittal for maximum pressure ratings and temperature reduction factors
  • Regional availability, contact Victaulic for details

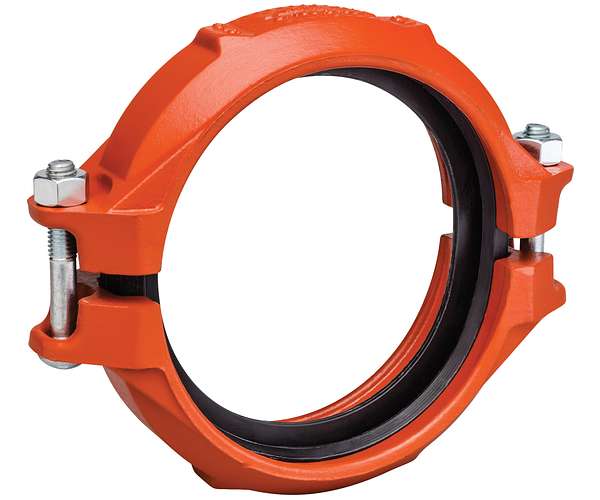

Installation-Ready™ Style 357 Rigid Coupling For CPVC/PVC Pipe
Installation-Ready™ Style 357 Rigid Coupling For CPVC/PVC Pipe
Installation-Ready™ Style 357 Rigid Coupling For CPVC/PVC Pipe
  • Designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic PGS-300 groove profile
  • Sizes from 2 - 12"/DN50 - DN300
  • Refer to the submittal for maximum pressure ratings and temperature reduction factors
  • Regional availability, contact Victaulic for details

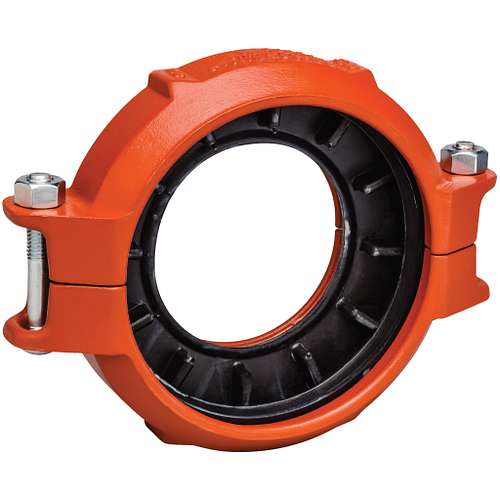

Style 358 Reducing Coupling For CPVC/PVC Pipe
Style 358 Reducing Coupling For CPVC/PVC Pipe
Style 358 Reducing Coupling For CPVC/PVC Pipe
  • Designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic PGS-300 groove profile
  • Sizes from 2 1/2 x 2" to 10 x 8"/73.0 x 60.3 mm to 273.0 x 219.1 mm
  • Refer to the submittal for maximum pressure ratings and temperature reduction factors
  • Regional availability, contact Victaulic for details
Installation-Ready™ Style 356 Transition Coupling For CPVC/PVC Pipe
Installation-Ready™ Style 356 Transition Coupling For CPVC/PVC Pipe
Installation-Ready™ Style 356 Transition Coupling For CPVC/PVC Pipe
  • Designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic PGS-300 groove profile
  • Sizes from 2 - 12"/DN50 - DN300
  • Refer to the submittal for maximum pressure ratings and temperature reduction factors
  • Regional availability, contact Victaulic for details

SYSTEM SOLUTION FOR CPVC PIPE: DOWNLOADS

  • All Resources
  • Submittals
  • Manuals
  • Technical & Design Data
Resource Number Downloads Collection
Installation-Ready™ Series 857 Rigid Coupling for CPVC/PVC Pipe in Potable Water Applications Submittal 33.17
Style 858 Reducing Coupling for CPVC/PVC Pipe in Potable Water Applications Submittal 33.18
Installation-Ready™ Series 856 Transition Coupling for CPVC/PVC Pipe in Potable Water Applications Submittal 33.16
PGS™-300 Grooved End Fittings Submittal 33.03
CG1100 Cut Grooving Tools for CPVC/PVC Pipe Submittal 24.09
PGS™-300Cut Groove Specifications 25.18
PGS™-300 Style 355 Expansion Joint Submittal 33.05
Installation-Ready™ Style 357 Rigid Coupling Submittal 33.07
Style 358 Reducing Coupling Submittal 33.08
Installation-Ready™ Style 356 Transition Coupling Submittal 33.06
Installation-Ready™ Style 357 Rigid Coupling Installation Instructions I-357
Installation-Ready™ Style 356 Transition Coupling Installation Instructions I-356
Style 358 Reducing Coupling Installation Instructions I-358
CG1100 Cut Grooving Tool for CPVC/PVC Pipe Tool Manual TM-CG1100
Go/No-Go Groove Diameter Cable for CPVC Pipe Installation Instructions I-GDC-PGS-300
Victaulic Piping Products for CPVC/PVC Materials Field Installation Handbook I-350
