Flexible Sprinkler Fittings

Confidence. Speed. Performance.

Fully engineered and manufactured by Victaulic, VicFlex™ offers unparalleled confidence with 100% kink-resistance, unmatched speed – up to 10x faster than threaded black pipe, and industry-leading performance through a 2”| 50mm UL Listed bend radius.

Featuring easy-to-install brackets, hoses, fittings, and even sprinklers for a wide variety of sprinkler system applications, including:

  • Suspended Ceilings
  • Hard-lid Ceilings
  • Specialty Applications
  • Pre-assembled Systems

VicFlex Flexible Sprinkler Fitting System

Confidence

AH2-CC
  • PAD-TO-PAD VISUAL CONFIRMATION FOR SERIES AH2-CC
  • IDENTIFY THE INDUSTRY LEADING 2" UL BEND RADIUS FROM A DISTANCE USING ORANGE AND WHITE SLEEVE
  • 100% KINK RESISTANCE
  • TIGHTEST BENDS IN THE INDUSTRY
  • 100% VICTAULIC DESIGN AND MANUFACTURING

Speed

icon-speed-10x@2x

UP TO 10X FASTER THAN THREADED BLACK PIPE

icon-speed-cuttingtools@2x

ELIMINATE MESSY CUTTING TOOLS

icon-speed-armfab@2x

ELIMINATE CUSTOM ARM-OVER FABRICATION

Hard_Pipe

Traditional Threaded Black Pipe

icon-vs
vicflex-packaging-q2cy6augaov81zaylkdeirxf0j4tb7sae95cylnf9k

VicFlex™ Flexible Sprinkler Fittings

Performance

icon-performance-onepiece@2x

ONE-PIECE BRACKET - NO LOST PARTS

icon-performance-tamperres@2x

TAMPER-RESISTANT INSTALLATION

icon-performance-sprinklerpos@2x

ELIMINATE SPRINKLE-POSITIONING PROBLEMS DUE TO CEILING SAG OR SHIFT

vicflex-comparison
click_3
vicflex-comparison

EVERYONE WINS

Increase productivity. Increase design flexibility. Increase peace-of-mind.

icon-everyonewins-contractors@2x

CONTRACTORS

INCREASED CONVENIENCE

  • Eliminate measuring and simplify ordering
  • Stockable product means no waiting for delivery and reduced coordination
  • Eliminate multiple trips to the jobsite
  • Order VicFlex dry sprinklers at the same time as other material
  • One-piece brackets with no loose parts
icon-everyonewins-owners@2x

OWNERS AND DESIGNERS

INCREASED DESIGN FLEXIBILITY

  • Deliver beautiful spaces without compromising on the quality of your craft
  • Eliminate soffits and ensure sprinkler piping will be conditioned
  • Stop wasting time figuring out how to hide sprinkler piping, concealed pendent applications are now a reality
icon-everyonewins-authorities@2x

AUTHORITIES HAVING JURISDICTION

INCREASED SAFETY, PEACE OF MIND

  • With VicFlex Dry Sprinklers you don’t have to worry about frozen pipes and impaired systems. Eliminate damage, insurance claims and those middle of the night calls
  • Education and following NFPA Code is key to keeping lives safe and property intact. "Every dry sprinkler concern I’ve had in the past has been answered. It just makes sense.“ Steve Berry, City of Raleigh North Carolina Assistant Fire Marshall.

Vicflex™ Video Library

REQUEST A DEMO

THANK YOU FOR YOUR INTEREST IN VICTAULIC VICFLEX™.

TO REQUEST A DEMO PLEASE FILL OUT THE FORM.

vicflex

VICTAULIC

4901 KESSLERSVILLE ROAD, EASTON, PA 18040

FOR U.S. CUSTOMERS, CALL 1.800.PICK.VIC (1.800.742.5842).

FOR CANADIAN CUSTOMERS, CONTACT YOUR SERVICING

       VICTAULIC BRANCH OR CALL (905) 884-7444.

"*" indicates required fields

VICFLEX PRODUCTS

  • All Products
  • Fire Sprinklers
  • Fittings
VicFlex™ Style AB2 Bracket
VicFlex™ Style AB2 Bracket
VicFlex™ Style AB2 Bracket
  • One-piece bracket, for suspended or hard-lid ceilings
  • Over/Under Center Bracket - allows for installation and vertical adjustment from above or below the ceiling surface
  • Allows installation before ceiling tile, eliminate messy cutting tools
  • Sizes 24" | 610 mm and 48" | 1219 mm

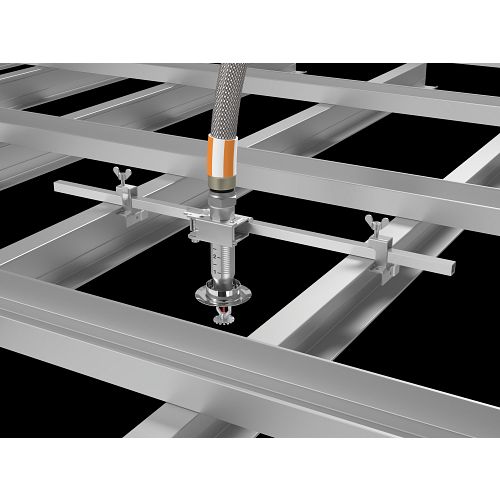

VicFlex™ Style AB5 Bracket
VicFlex™ Style AB5 Bracket
VicFlex™ Style AB5 Bracket
  • Optimized for Wood and Metal Studs
  • No screws for metal studs; one-screw per side for wood studs
  • Over/Under Center Bracket - allows for installation and vertical adjustment from above or below the ceiling surface
  • Sizes 24" | 610 mm and 48" | 1219 mm

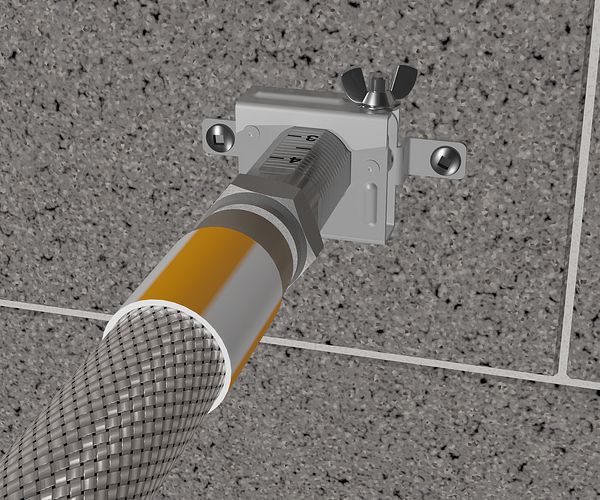

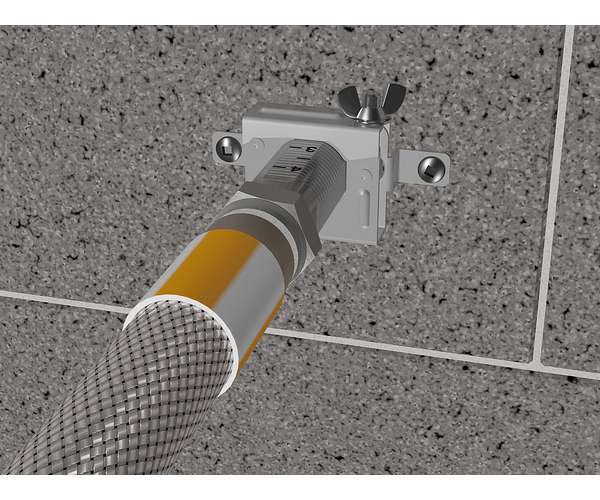

VicFlex™ Style AB3 Bracket – Surface Mount
VicFlex™ Style AB3 Bracket – Surface Mount
VicFlex™ Style AB3 Bracket – Surface Mount
  • One-piece bracket, for institutional applications
  • Up to 10× faster than threaded black pipe, eliminate messy cutting tools
  • Reducer nipples sizes 5.75" | 140 mm, 9.0" | 230 mm, and 13" | 330 mm
VicFlex™ Style AB11 Bracket
VicFlex™ Style AB11 Bracket
VicFlex™ Style AB11 Bracket
  • Allows for low-profile installations down to 6"| 150mm total takeout
  • For use only with 90-degree low profile elbows
  • Sizes 24"| 610 mm and 48" | 1219 mm
  • Regional availability, contact Victaulic for details
VicFlex™ Style AB6 Assembly – Cold Storage
VicFlex™ Style AB6 Assembly – Cold Storage
VicFlex™ Style AB6 Assembly – Cold Storage

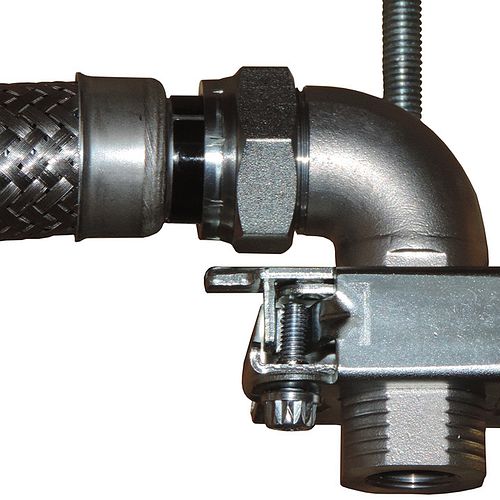

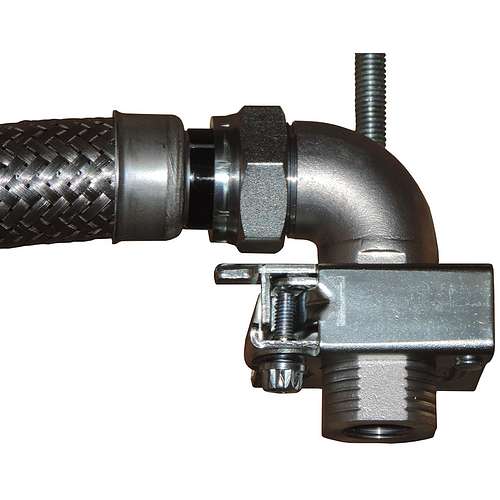

VicFlex™ Style AB12 Bracket
VicFlex™ Style AB12 Bracket
VicFlex™ Style AB12 Bracket
  • Designed to work from 36" | 914mm down to 4" | 100mm clearance from face of ceiling
  • Allows installation before ceiling tile, eliminate messy cutting tools
  • Standardized opening accepts 3/8"/M10 standard threaded rod
VicFlex™ Dry Sprinkler Series VS1
VicFlex™ Dry Sprinkler Series VS1
VicFlex™ Dry Sprinkler Series VS1
 Confidence: Meets NFPA 13 installation requirements Speed: Eliminate custom field measurements with the convenience of standard stock Performance: Three convenient lengths and tight bend radius means aesthetically preferred pendent installations are a reality.
  • cULus Listed
  • K5.6 Commercial
  • Quick and Standard Response
  3 Lengths:
  • 38" / 955mm
  • 50" / 1270mm
  • 58" / 1475mm
  Sprinkler Configurations:
  • Flat Plate Concealed Pendent
  • Recessed Pendent
  • Sleeve and Skirt Pendent
  • Recessed Sidewall
  • Sleeve and Skirt Sidewall
  Bracket Styles:
  • UL Listed: Style VB1, Style VB2, Style VB3, Style VB4
  • FM Approved: Style VB1, Style VB2, Style VB3, Style VB4, Style VB5, Style VBBA

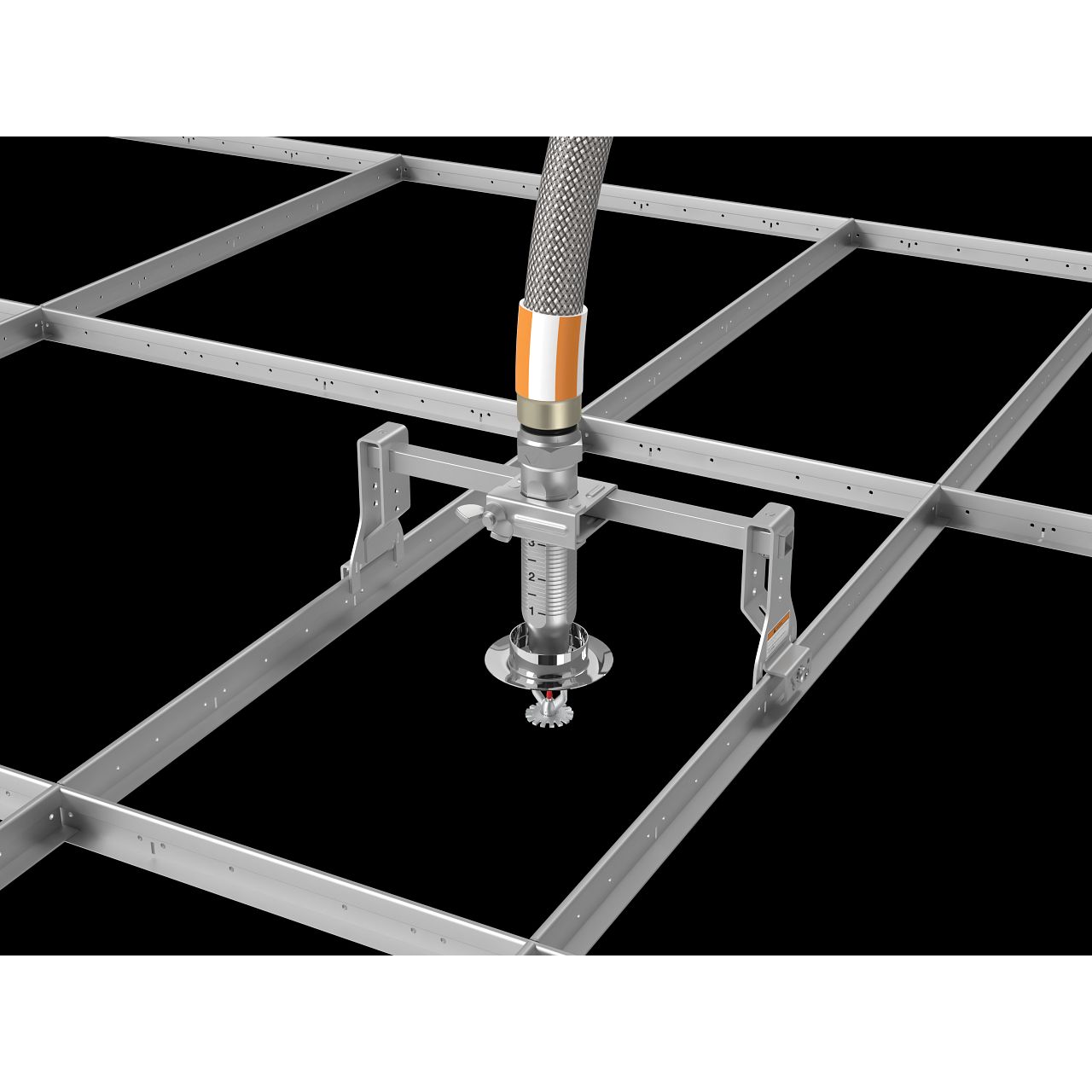

VicFlex™ Style AB10 Bracket – Armstrong® Tech Zone™
VicFlex™ Style AB10 Bracket – Armstrong® Tech Zone™
VicFlex™ Style AB10 Bracket – Armstrong® Tech Zone™
  • One-piece bracket, for Armstrong® TechZone™ ceilings
  • Eliminate messy cutting tools
  • Sizes 6" | 150 mm

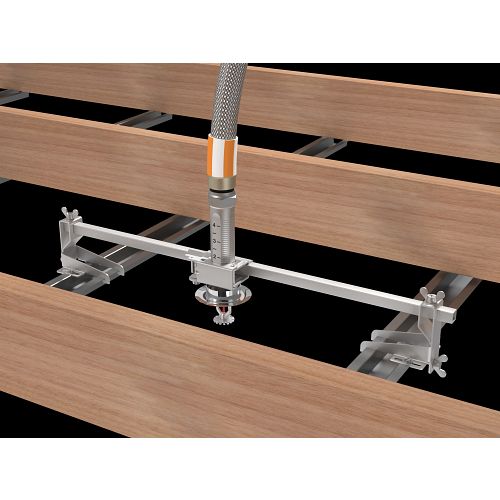

VicFlex™ Style AB4 Bracket – Hat Channel
VicFlex™ Style AB4 Bracket – Hat Channel
VicFlex™ Style AB4 Bracket – Hat Channel
  • One-piece bracket, for hard-lid ceilings with hat furring channel grid system
  • Up to 10× faster than threaded black pipe, eliminate messy cutting tools
  • Over/Under Center Bracket - allows for installation and vertical adjustment from above or below the ceiling surface
  • Sizes 24" | 610 mm and 48" | 1219 mm

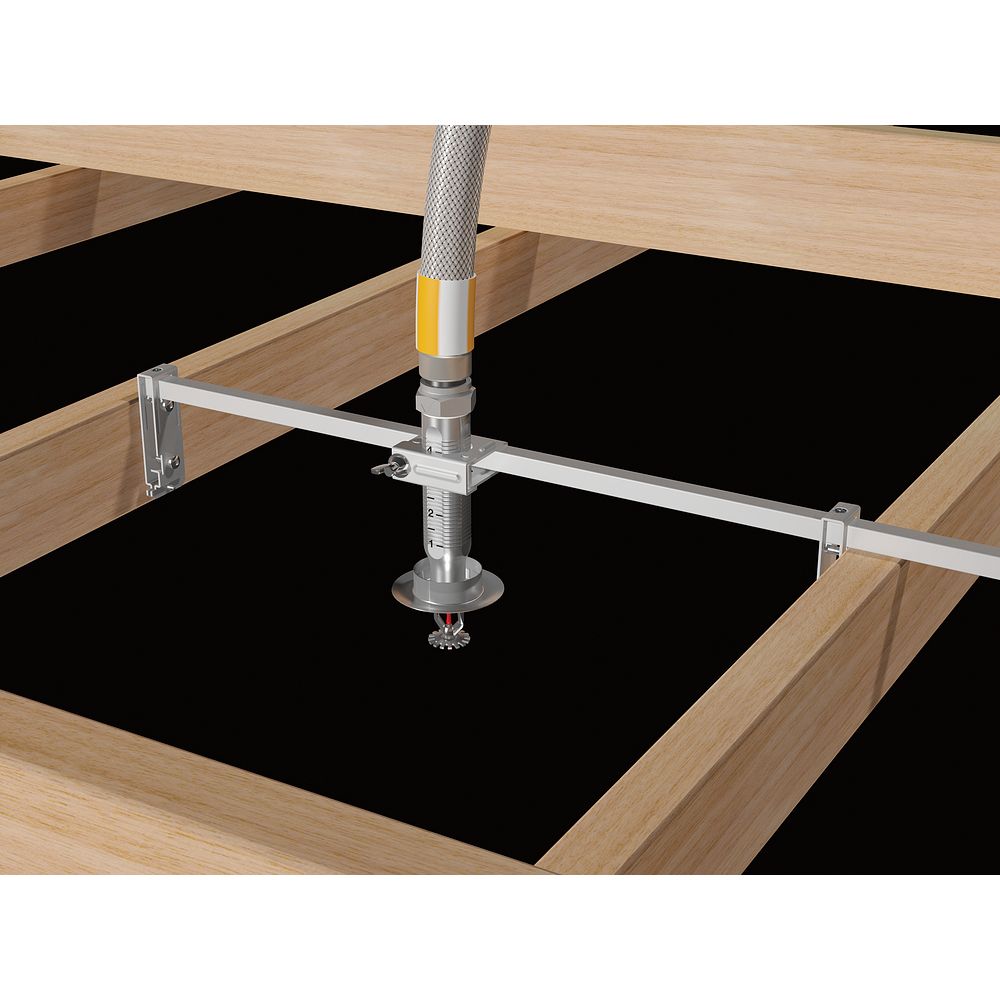

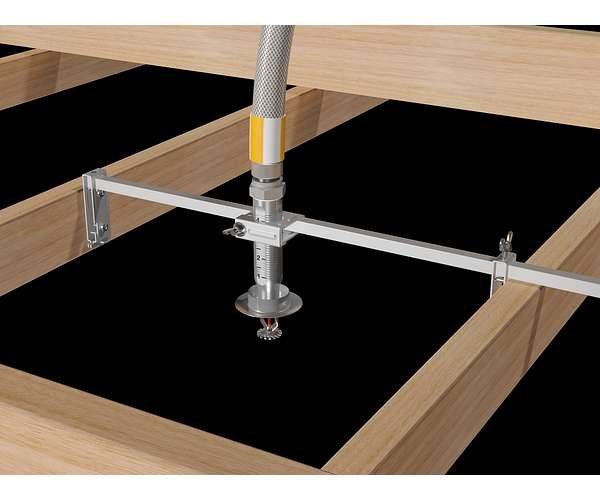

VicFlex™ Style AB7 Bracket
VicFlex™ Style AB7 Bracket
VicFlex™ Style AB7 Bracket
  • One-piece bracket, for suspended or hard-lid ceilings
  • Up to 10× faster than threaded black pipe, eliminate messy cutting tools
  • Sizes 24" | 610 mm and 48" | 1219 mm
VicFlex™ Style AB7 Bracket – Adjustable
VicFlex™ Style AB7 Bracket – Adjustable
VicFlex™ Style AB7 Bracket – Adjustable
  • One-piece bracket, for suspended or hard-lid ceilings
  • Up to 10× faster than threaded black pipe, eliminate messy cutting tools
  • Sizes 27 1/2" | 700 mm and 55" | 1400 mm

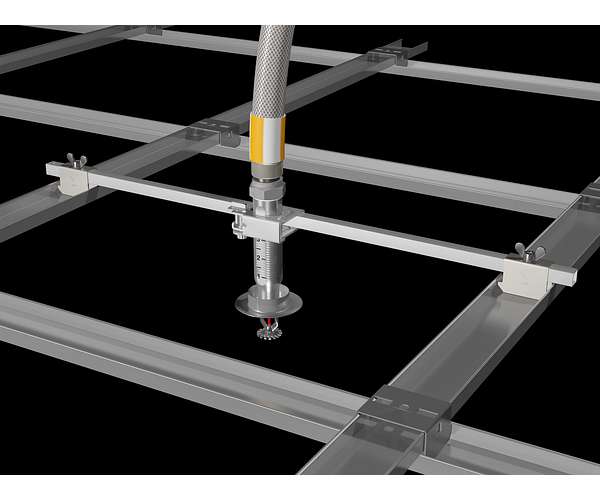

VicFlex™ Style AB8 Bracket – CD Profile
VicFlex™ Style AB8 Bracket – CD Profile
VicFlex™ Style AB8 Bracket – CD Profile
  • One-piece bracket, for hard-lid ceilings
  • Up to 10× faster than threaded black pipe, eliminate messy cutting tools
  • Sizes 24" | 610 mm and 48" | 1219 mm

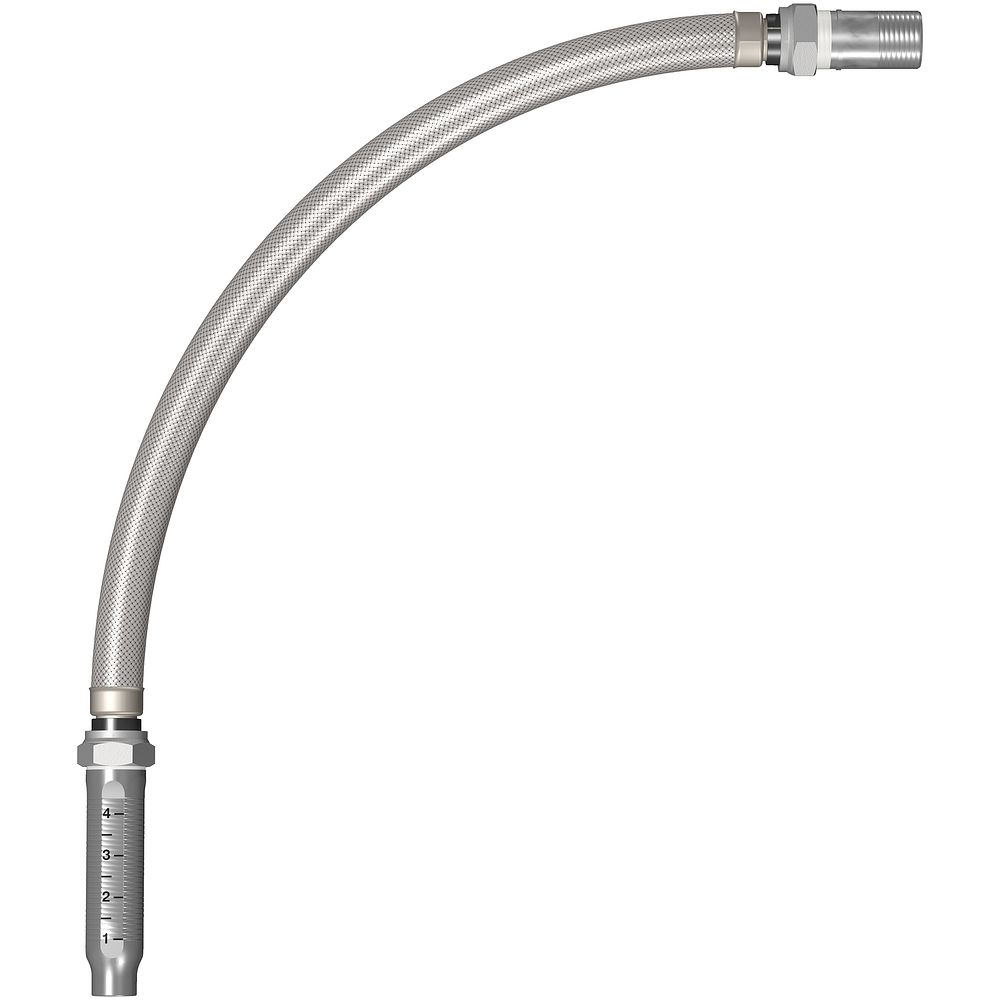

VicFlex™ Series AH1 Braided Hose
VicFlex™ Series AH1 Braided Hose
VicFlex™ Series AH1 Braided Hose
  • Up to 10× faster than threaded black pipe, 100% kink resistant
  • Minimum bend radius: cULus 3" | 76 mm, FM 7" | 178 mm, VdS  3" | 76 mm
  • Sizes from 31 - 72" | 790 - 1830 mm
  • Pressures up to 232 psi | 1600 kPa | 16 bar

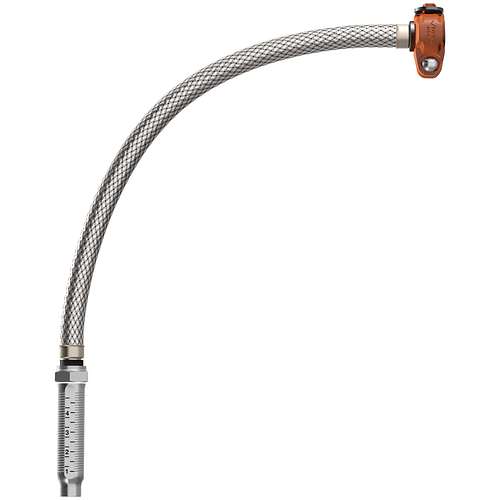

VICFLEX™ SERIES AH1-CC BRAIDED HOSE
VICFLEX™ SERIES AH1-CC BRAIDED HOSE
VICFLEX™ SERIES AH1-CC BRAIDED HOSE
  • Patented captured coupling technology; allows fast, safe installation and pad to pad visual confirmation
  • Up to 10× faster than threaded black pipe, 100% kink resistant
  • Minimum bend radius: cULus - 3″ | 76 mm, FM - 7″ | 178 mm, VdS  - 3″ | 76 mm
  • Sizes from 31 - 72″ | 790 - 1830 mm
  • Pressures up to 232 psi | 1600 kPa | 16 bar
VicFlex™ Series AH2-CC Braided Hose
VicFlex™ Series AH2-CC Braided Hose
VicFlex™ Series AH2-CC Braided Hose
  • Patented captured coupling technology; allows fast, safe installation and pad to pad visual confirmation
  • Tightest bends available; 100% kink resistant
  • Minimum bend radius: cULus  2" | 51 mm, FM  7" | 178 mm, VdS/LPCB  3" | 76.2 mm
  • Sizes 31 - 72" | 790 - 1830 mm
  • Pressures up to 232 psi | 1600 kPa | 16 bar
VicFlex™ Series AH2-300 Braided Hose
VicFlex™ Series AH2-300 Braided Hose
VicFlex™ Series AH2-300 Braided Hose
  • High pressure hose; 100% Victaulic design and manufacturing
  • Up to 10× faster than threaded black pipe, 100% kink resistant
  • Minimum bend radius: FM 8" | 200 mm
  • Sizes from 31 - 72" | 790 - 1830 mm
  • Pressures up to 300 psi | 2068 kPa | 21 bar

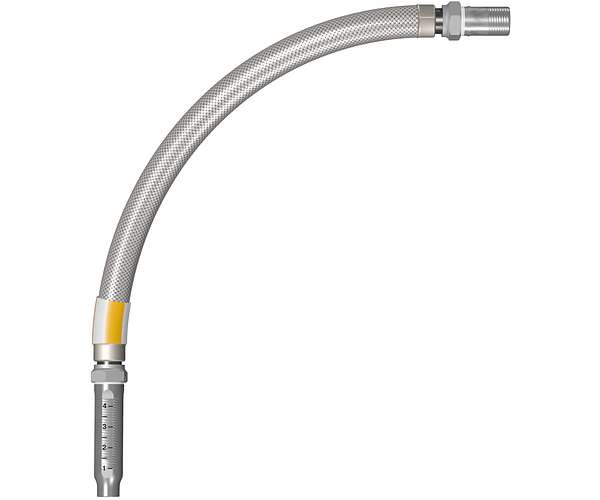

VicFlex™ Series AH2 Braided Hose
VicFlex™ Series AH2 Braided Hose
VicFlex™ Series AH2 Braided Hose
  • Tightest bends available; 100% Victaulic® design and manufacturing
  • Up to 10× faster than threaded black pipe, 100% kink resistant
  • Minimum bend radius: cULus  2" | 51 mm, FM  7" | 178 mm, VdS/LPCB  3" | 76.3 mm
  • Sizes from 31 - 72" | 790 - 1830 mm
  • Pressures up to 232 psi | 1600 kPa | 16 bar

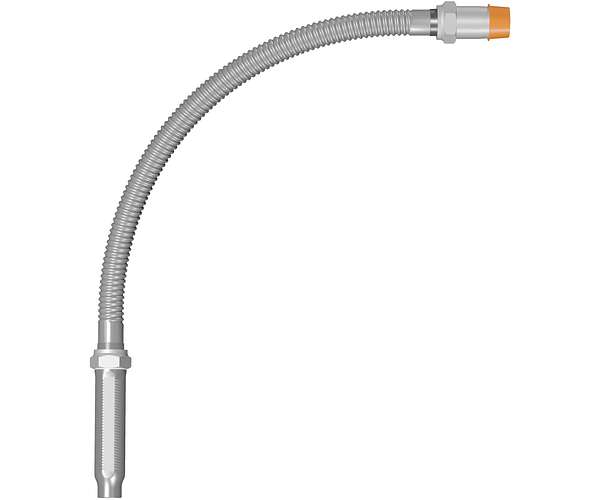

VicFlex™ Series AH5 Corrugated Hose
VicFlex™ Series AH5 Corrugated Hose
VicFlex™ Series AH5 Corrugated Hose
  • Flexible stainless steel hose, for use in suspended ceilings
  • Up to 10× faster than threaded black pipe, eliminate messy cutting tools
  • Minimum bend radius: cULus  4" | 102 mm
  • Sizes from 24 - 72" | 610 - 1830 mm
  • Pressures up to 175 psi | 1207 kPa | 12 bar

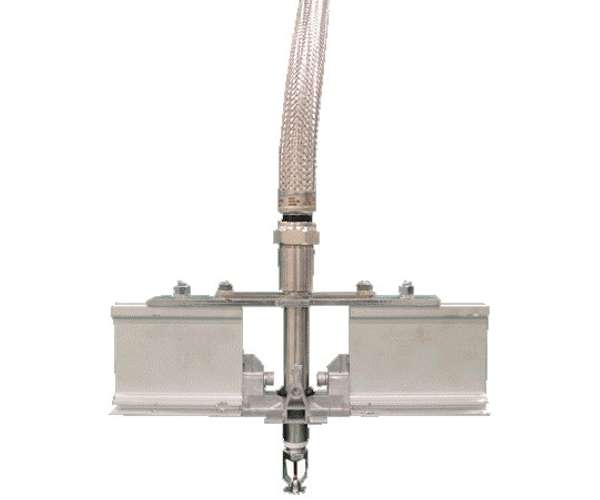

VicFlex™ Series AQC-U – Cleanroom
VicFlex™ Series AQC-U – Cleanroom
VicFlex™ Series AQC-U – Cleanroom
  • Clean room applications
  • Minimum bend radius: FM 7″ | 178 mm"
  • Sizes from 36 – 72″ | 915 – 1830 mm
  • Connection to branch line: 1"/DN25 Grooved IGS or 1"/25 mm NPT/BSPT Male Thread
  • Connections to sprinkler head: ½"/15 mm NPT, 3/4"/20 mm NPT
  • Pressures up to 200 psi | 1375 kPa | 13.8 bar

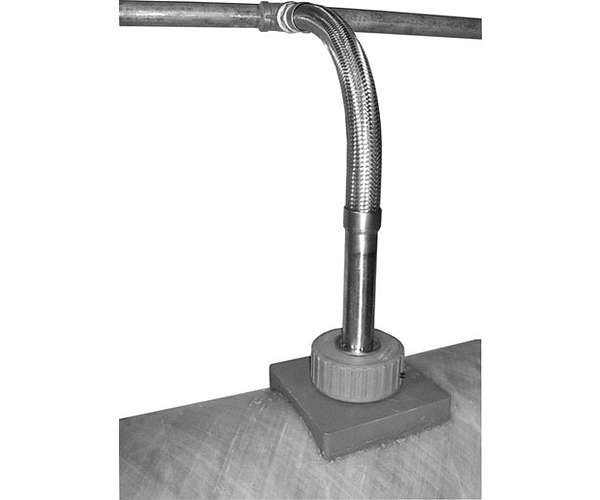

VicFlex™ Series AQD – FRP Duct
VicFlex™ Series AQD – FRP Duct
VicFlex™ Series AQD – FRP Duct
  • Fiberglass-reinforced plastic duct applications
  • Square or round base mounts
  • Minimum hose bend radius: FM 6" | 150 mm
  • Hose lengths: 24, 48, 72" | 610, 1220, 1830 mm
  • Pressures up to 175 psi | 1207 kPa | 12 bar

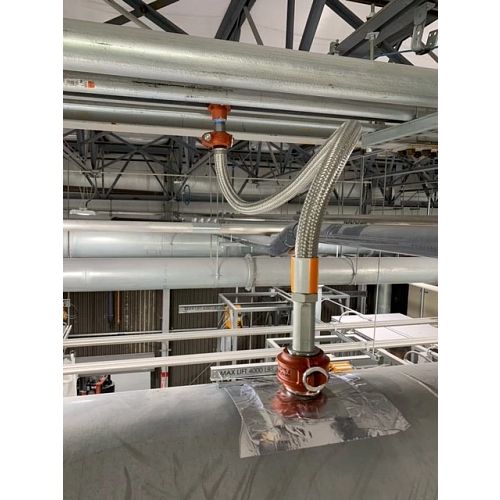

VicFlex™ Series AQD – Metal Duct
VicFlex™ Series AQD – Metal Duct
VicFlex™ Series AQD – Metal Duct
  • Metal duct system applications
  • Square or round base mounts
  • Minimum hose bend radius: FM 7″ | 177.8 mm
  • Hose length: 48″ | 1220 mm
  • Pressures up to 200 psi | 1375 kPa | 13 bar
VicFlex™ Standard Coverage Sprinkler Series VS2
VicFlex™ Standard Coverage Sprinkler Series VS2
VicFlex™ Standard Coverage Sprinkler Series VS2
  • cULus Listed and FM Approved
  • Quick and Standard Response
  • 2 Lengths: 56" | 1422mm, 68" |1727mm
  • Available with Style 108 FireLock™ IGS™ Coupling Connection

  • Pendent and Recessed Pendent:
    • V3202, K5.6 | 8.1 SI, Quick Response
    • V3201, K5.6 | 8.1 SI, Standard Response
  • Concealed Pendent:
    • V3204, K5.6 | 8.1 SI, Quick Response (FM Approved as Standard Response)
    • V3203, K5.6 | 8.1 SI, Standard Response (cULus Listed only)

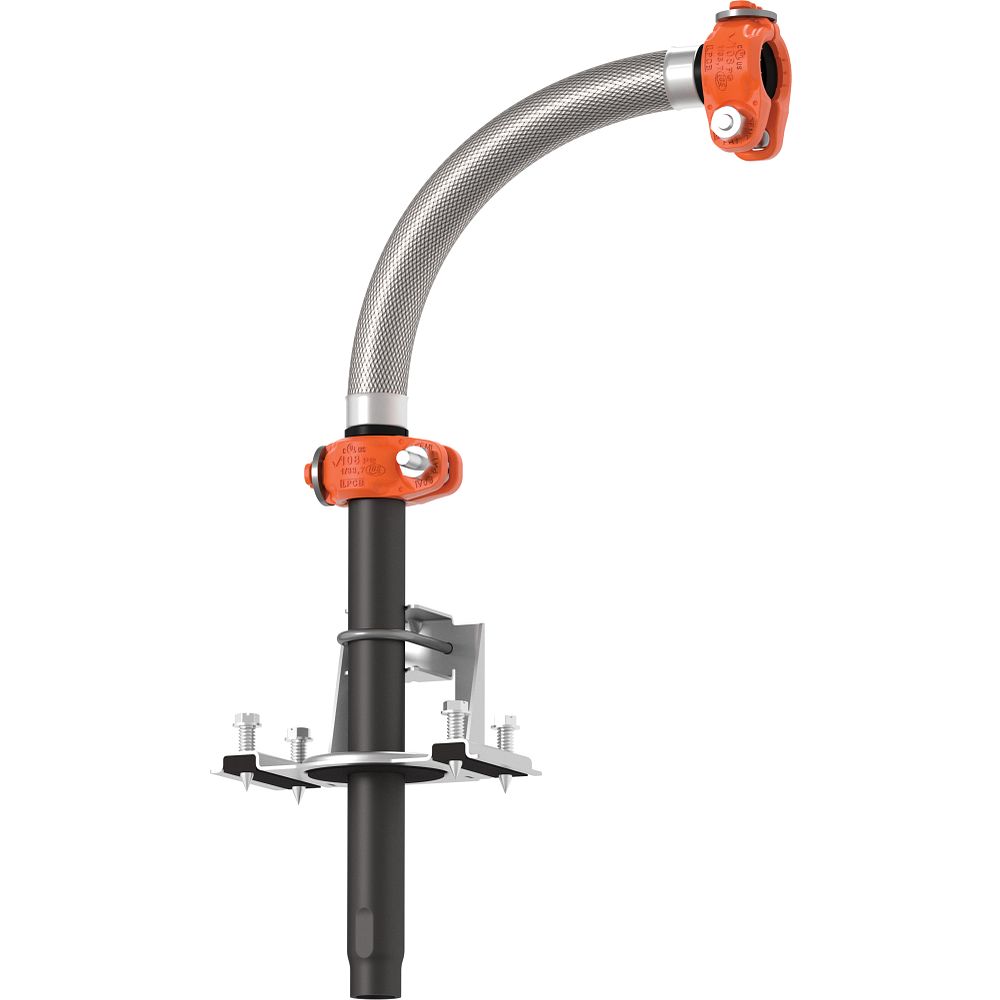

VicFlex™ Style AB6W for Wet Drop Assemblies
VicFlex™ Style AB6W for Wet Drop Assemblies
VicFlex™ Style AB6W for Wet Drop Assemblies
  • Optimized for surface-mounted wet sprinkler system applications
  • Combines trusted VicFlex™ Style AB6 Bracket technology with the 53"/1346 mm Series GH1-C2C hose and a 12"/305 mm No. 148 Reducer
  • Available in two different outlet sizes:
    • 1/2"/DN15 - FM Approved up to K5.6/8,1 (S.I.)
    • 3/4"/DN20 - FM Approved up to K11.2/16,1 (S.I.)
VicFlex™ Style AB14 Bracket
VicFlex™ Style AB14 Bracket
VicFlex™ Style AB14 Bracket
  • Elbow shaped stand-off mount for wood and metals joists
  • Uniquely designed mounting clip ensures perfect concealed  or recessed alignment for sidewall and pendent sprinklers
    • both concealed and recessed mounting brackets included with each product
  • Allows for seamless escutcheon and coverplate installation
  • Two sprinkler outlet sizes: ½” or ¾”
  • UL Listed and FM Approved for use with the following flexible sprinkler drops:
    • Series AH1, Series AH1-CC
    • Series AH2, Series AH2-CC
  • Sold in box quantitites of 10
VicFlex™ Series AH4 Braided Hose
VicFlex™ Series AH4 Braided Hose
VicFlex™ Series AH4 Braided Hose
  • Up to 10× faster than threaded black pipe, 100% kink resistant
  • Minimum bend radius: FM/CCCf 7″ | 178 mm, VdS 3″ | 76.3 mm
  • Sizes from 31 – 72″ | 790 – 1830 mm
  • Maximum working pressures up to 232 psi | 1600 kPa | 16 bar
  • Regional availability – contact Victaulic

VICFLEX DOWNLOADS

  • All Resources
  • Submittals
  • Manuals
Resource Number Downloads Collection
Field Installation Handbook for Victaulic VicFlex™ Products I-VICFLEX
VicFlex™ Minimum Bend Radius Guides I-VICFLEX-BRG
VicFlex™ Series AQD Duct Submittal 10.87
VicFlex™ Series AQC-U Cleanroom Submittal 10.86
VicFlex™ Series AH2-300 Braided Hose Submittal 10.84
VicFlex™ Series AH1 and AH1-CC Braided Hose Submittal 10.95
VicFlex™ Style AB6 Assembly - Cold Storage Submittal 10.90
VicFlex™ Series AH5 Corrugated Hose Submittal 10.89
VicFlex™ Series VS1 Dry Sprinkler Submittal 10.91
VicFlex™ Series AH2 and AH2-CC Braided Hose Submittal 10.85
VicFlex™ Series AQD Braided Flexible Hose Assemblies for Metal Ducts Submittal 10.77
VicFlex™ Fittings Series AH3 Braided Hose Submittal 10.94
VicFlex™ Series VS2 Standard Coverage Sprinkler Submittal 10.93

Recent Blog Posts

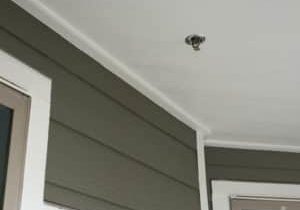

Preventing System Impairments due to Freezing Temperatures: 3 Advantages to Using Flexible Dry Sprinklers

Preventing System Impairments due to Freezing Temperatures: 3 Advantages to Using Flexible Dry Sprinklers

To minimize the risk of freeze-ups in wet sprinkler systems, use dry sprinklers in areas exposed to below-freezing temperatures, so long as they're...

NFPA 13: How to Properly Calculate Exposed Dry Sprinkler Barrel Lengths

NFPA 13: How to Properly Calculate Exposed Dry Sprinkler Barrel Lengths

Contractors must choose the correct dry sprinkler barrel length to meet the “NFPA 13” minimum requirements and avoid installation issues.

Flexible fire protection can help drive the world’s digital future

Flexible fire protection can help drive the world’s digital future

Ease of installation, consistency of design, reliability and flexibility are key for fire protection systems in data centers.

View All Blog Posts
