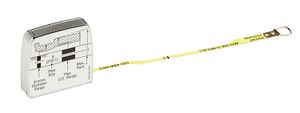

PT100A, PT101, PT102A Pipe Diameter Tapes

  • Go/No-Go pocket-sized steel tapes for taking circumferential measurements, marked in 1/100ths of an inch increments
  • Go/No-Go side can be used to check cut or roll grooved pipe for conformance to Victaulic grooved pipe specifications
  • Tapes notched on the lead end to allow proper overlap within the groove for more accurate measurement
  • PT100A contains Go/No-Go markings for use with ¾ -– 24″| DN20 –- DN600 pipe; tape marked with 0.01″| 0.25 mm increments on the opposite side
  • PT102A contains Go/No-Go markings for use with Original Groove System sizes 8 –- 12″| DN200 – -DN300 and Advanced Groove System sizes 14 -– 72″| DN350 –- DN1800; tape marked in 0.02″| 0.5 mm increments on the opposite side
  • Go/No-Go side of tapes may not be used to measure cast iron, ductile iron, or copper tube sizes
