Hydraulic Control Valves For Fire Protection

Victaulic now offers innovative solutions for the control and management of fire protection systems specifically as it relates to water supply and pressure control.

Regardless of application, dependable operation and ease of service are important to your bottom line. Hydraulic Control Valves with improved flow capacity, decreased water hammer and simplified maintenance can increase operating life and reduce total cost of ownership for the fire protection system. Victaulic’s advanced valve designs do exactly that.

Offering a range of functions:

Pressure Reducing
Pressure Relief
Suction Control
Level Control
Deluge

Series-867-7UL

Series-867-4UF-1

Obstruction-free design increases flow capacity by up to 40% (Cv = up to 3,801)
No water hammer at closing smooth, cushioned operation improves operating life and eliminates noise
Highest cULus Listed and FM Approved pressure rating for pressure reducing and pressure relief applications – 365 psi | 2517 kPa | 25bar
Up to eight times faster, simplified maintenance due to rolling elastomeric diaphragm design and 4-bolt cover removal
Industry-first and industry-leading flow stability without an anti-cavitation accessory required

Hdyraulic Control Vales for Fire Protection video library

Interested in learning more?

Hydraulic Control Valves for Fire Protection Downloads

Type	Title	Number	Languages	Download	Collection
Submittal	Series 867 Pressure Reducing and Pressure Control Submittal	30.93	english	Download	ADD
Submittal	Series 866 Level Control Submittal	30.94	english	Download	ADD

Hydraulic Control Valves for Fire Protection Products

All products
Flow Control
Devices

	Series 869E-2M Classic Electric Release Deluge Valve • Proprietary reinforced rolling elastomeric diaphragm • In-line serviceability, eliminates the need to remove for service • Globe valve body (Series 800E) • Sizes 1 ½ 12″ \| DN40- DN300 • Pressures up to 175 psi \| 1207 kPa \| 12 bar
	Series 869E-3DC Electrically Operated Remote Operation On/Off, Downstream Pressure Control Deluge Valve • Proprietary reinforced rolling elastomeric diaphragm • In-line serviceability, eliminates the need to remove for service • Globe valve body (Series 800E) • Sizes 1 ½ 12″ \| DN40- DN300 • Pressures up to 175 psi \| 1207 kPa \| 12 bar
	Series 869E-3D Electrically Operated Remote Operation On/Off Deluge Valve • Proprietary reinforced rolling elastomeric diaphragm • In-line serviceability, eliminates the need to remove for service • Globe valve body (Series 800E) • Sizes 1 ½ - 12″ \| DN40- DN300 • Pressures up to 175 psi \| 1207 kPa \| 12 bar
	Series 869Y-2M Classic Electric Release Deluge Valve • Low-flow stability without an anti-cavitation accessory • Fully supported and reinforced diaphragm • No obstructions in the flow path • “Y” Pattern globe valve body (Series 800Y) • Sizes 1 ½ – 10″” \| DN40- DN250 • Pressures up to 365 psi \| 2517 kPa \| 25 bar
	Series 869Y-3DC Electrically Operated Remote Operation On/Off, Downstream Pressure Control Deluge Valve • Low-flow stability without an anti-cavitation accessory • Fully supported and reinforced diaphragm • No obstructions in the flow path • “Y” Pattern globe valve body (Series 800Y) • Sizes 1 ½ – 10″” \| DN40- DN250 • Pressures up to 365 psi \| 2517 kPa \| 25 bar
	Series 869Y-3D Electrically Operated Remote Operation On/Off Deluge Valve • Low-flow stability without an anti-cavitation accessory • Fully supported and reinforced diaphragm • No obstructions in the flow path • “Y” Pattern globe valve body (Series 800Y) • Sizes 1 ½ – 10″” \| DN40- DN250 • Pressures up to 365 psi \| 2517 kPa \| 25 bar

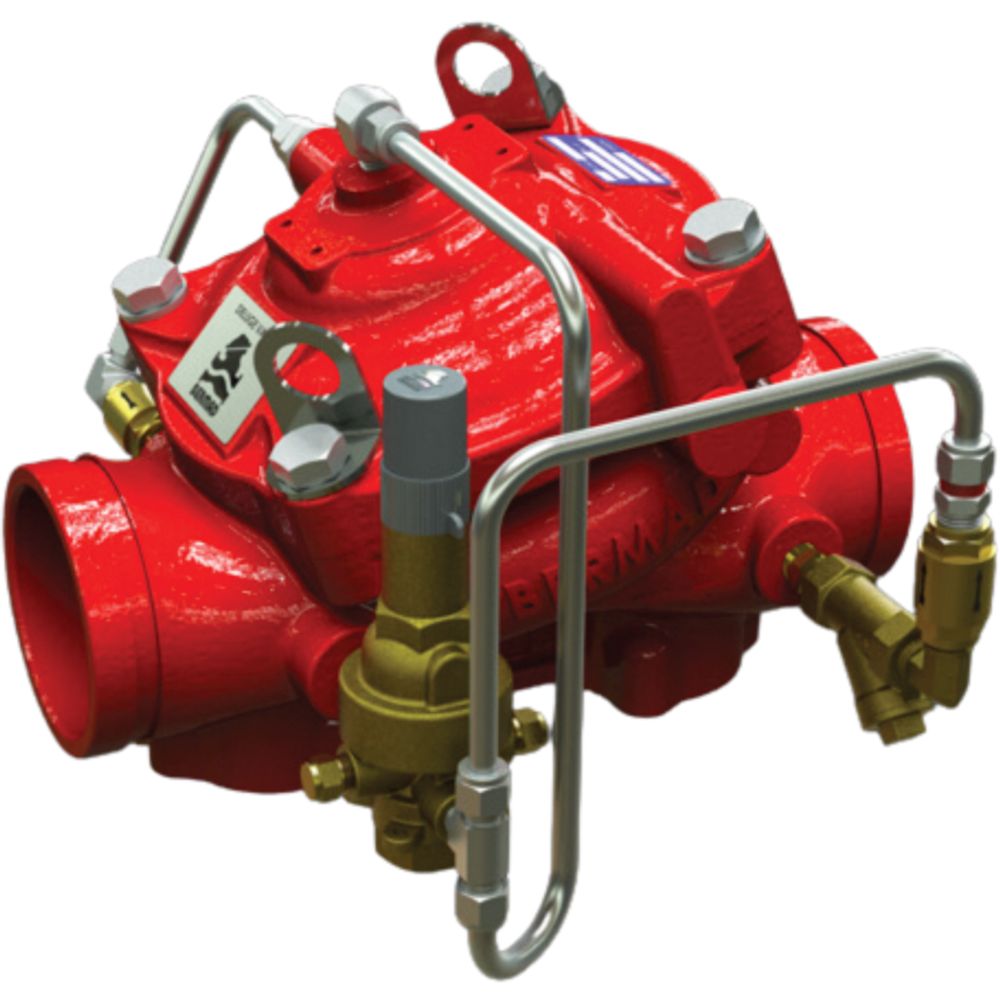

	Series 867-42T Pressure Reducing Valve • Low-flow stability without an anti-cavitation accessory • Fully supported and reinforced diaphragm • No obstructions in the flow path • “Y” Pattern globe valve body (Series 800Y) • Sizes 1 ½ – 10″” \| DN40- DN250 • Pressures up to 365 psi \| 2517 kPa \| 25 bar	Submittal

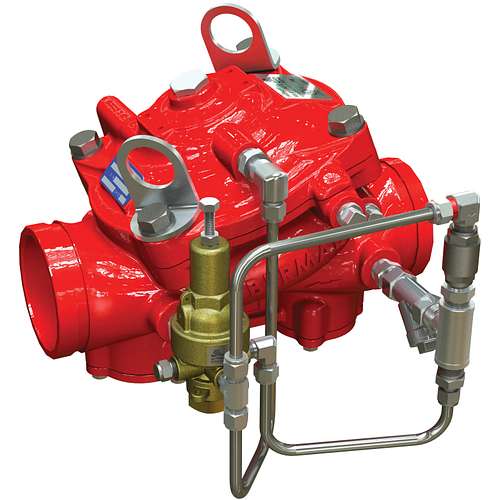

	Series 867-43T Pressure Relief Valve Low-flow stability without an anti-cavitation accessory Fully supported and reinforced diaphragm No obstructions in the flow path “Y” Pattern globe valve body (Series 800Y) Sizes 1 ½ – 10″” \| DN40- DN250 Pressures up to 365 psi \| 2517 kPa \| 25 bar Regional availability, contact Victaulic for details	Submittal
	Series 867-7UL Pressure Reducing Valve Designed for Fire Protection applications Double chamber actuator provides rapid response to changing system conditions Advanced actuator design increases operating life Y Pattern valve body (Series 800) Sizes 1 ½ - 16″ \| DN40 – DN400 Pressures up to 350 psi \| 2413 kPa \| 24 bar	Submittal

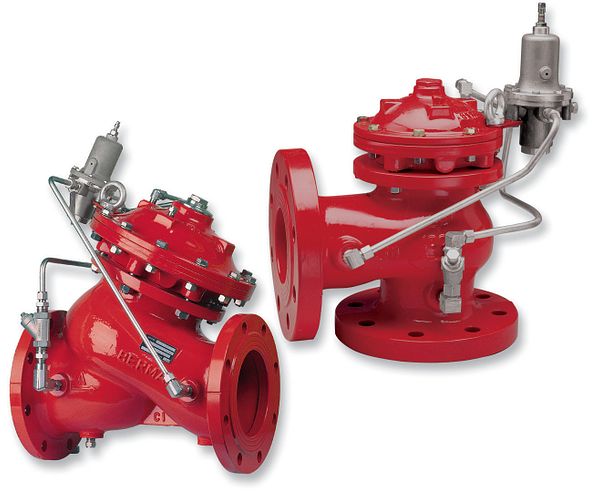

	Series 867-7UF Pressure Relief Valve Designed for Fire Protection applications Double chamber actuator provides rapid response to changing system conditions Advanced actuator design increases operating life Y Pattern valve body (Series 800) Sizes 1 ½ - 16″ \| DN40 – DN400 Pressures up to 350 psi \| 2413 kPa \| 24 bar	Submittal
	Series 867-759 Pressure Relief Valve Designed for Fire Protection applications Double chamber actuator provides rapid response to changing system conditions Advanced actuator design increases operating life Y-Pattern valve body (Series 800) Sizes 1 ½ - 16″ \| DN40 – DN400 Pressures up to 350 psi \| 2413 kPa \| 24 bar	Submittal
	Series 867-400 Pressure Reducing Valve Designed for Fire Protection applications Proprietary reinforced rolling elastomeric diaphragm In-line serviceability, eliminates the need to remove for service Globe valve body (Series 800E) Sizes 1 ½ 12″ \| DN40- DN300 Pressures up to 175 psi \| 1207 kPa \| 12 bar	Submittal

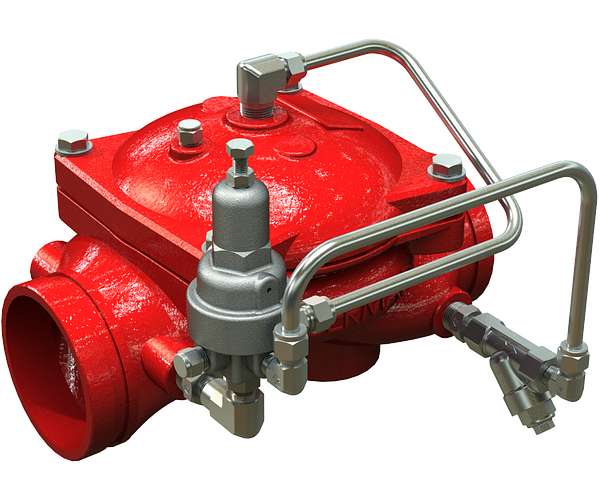

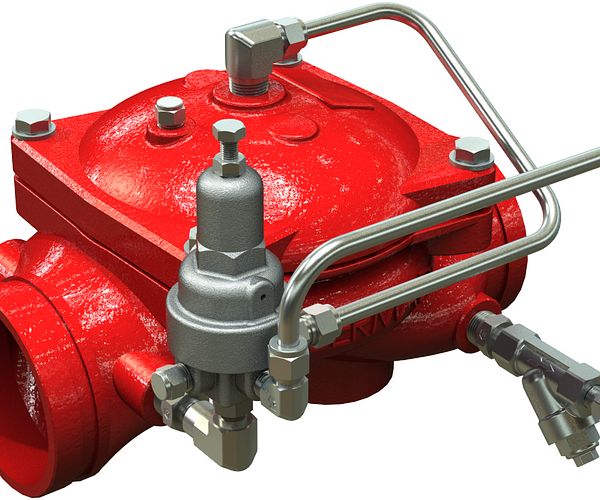

	Series 867-4UF Pressure Relief Valve Designed for Fire Protection applications Proprietary reinforced rolling elastomeric diaphragm In-line serviceability, eliminates the need to remove for service Globe valve body (Series 800) Sizes 1 ½ - 12″ \| DN40 – DN300 Pressures up to 175 psi \| 1207 kPa \| 12 bar	Submittal
	Series 867-459 Pressure Relief Valve Designed for Fire Protection applications Proprietary reinforced rolling elastomeric diaphragm In-line serviceability eliminates the need to remove for service Globe valve body (Series 800) Sizes 1 ½ - 12″ \| DN40 – DN300 Pressures up to 175 psi \| 1207 kPa \| 12 bar	Submittal

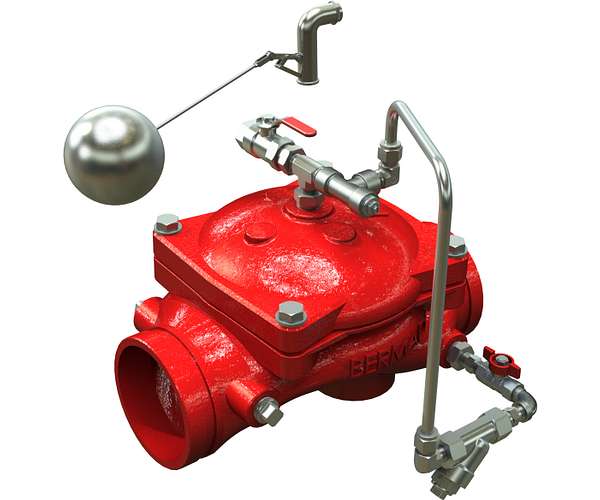

	Series 866-460 Level Control Valve Designed for Fire Protection applications Hydraulically controlled, diaphragm actuated valve that controls reservoir filling to maintain constant water level, regardless of fluctuating demand Globe valve body (Series 800E) Sizes 1 ½ - 12″ \| DN40 – DN300 Pressures up to 250 psi \| 1724 kPa \| 17 bar	Submittal

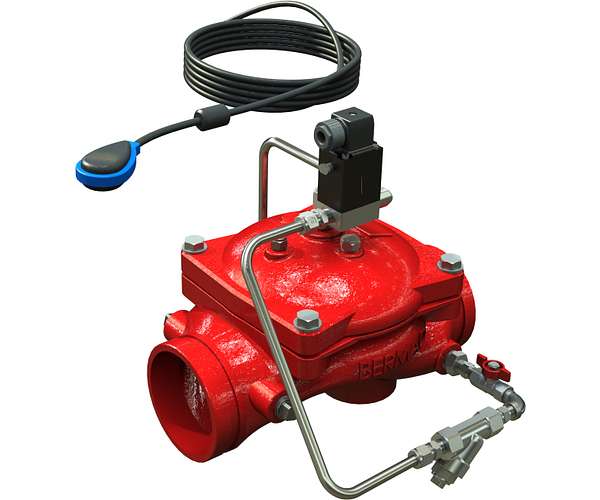

	Series 866-465 Level Control Valve Designed for Fire Protection applications Hydraulically controlled, diaphragm actuated valve that controls reservoir filling in response to electric float switch signals Globe valve body (Series 800E) Sizes 1 ½ 12″ \| DN40 – DN300 Pressures up to 250 psi \| 1724 kPa \| 17 bar	Submittal

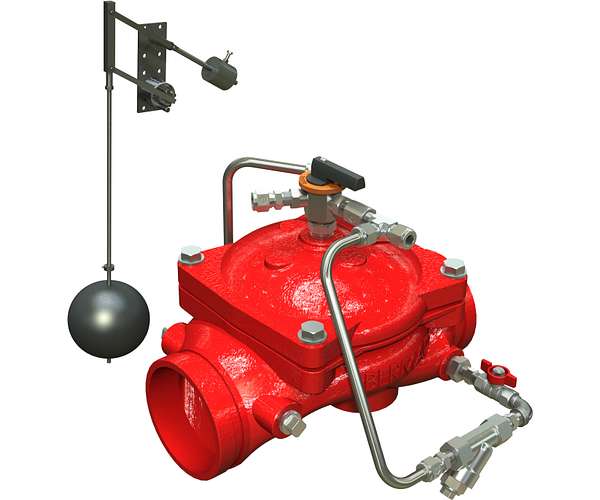

	Series 866-466 Level Control Valve Designed for Fire Protection applications Hydraulically controlled, diaphragm actuated control valve that controls reservoir filling in response to a hydraulic on-off float pressure commands Globe valve body (Series 800E) Sizes 1 ½ 12″ \| DN40 – DN300 Pressures up to 250 psi \| 1724 kPa \| 17 bar	Submittal
	Series 866-480 Level Control Valve Designed for Fire Protection applications Hydraulically controlled, diaphragm actuated valve that shuts off at a pre-set reservoir full level and opens in response to a sensor in the altitude pilot mounted on the main valve Globe valve body (Series 800E) Sizes 1 ½ 12″ \| DN40 – DN300 Pressures up to 250 psi \| 1724 kPa \| 17 bar	Submittal

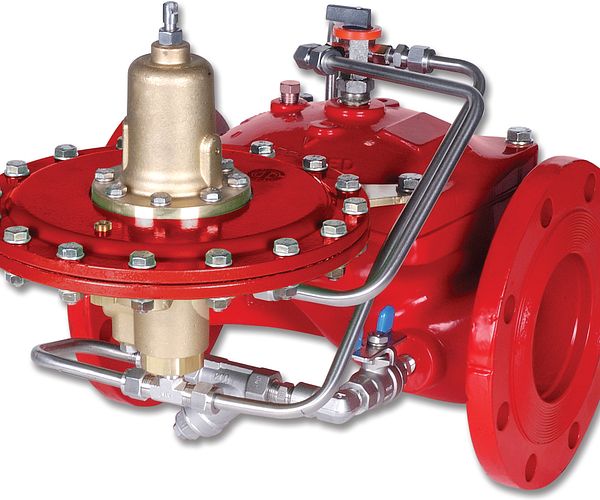

	Series 866-482 Level Control Valve Designed for Fire Protection applications Hydraulically controlled, diaphragm actuated valve that shuts off at a pre-set reservoir full level and opens in response to a sensor in the 3-way altitude pilot mounted on the main valve Globe valve body (Series 800E) Sizes 1 ½ – 12″ \| DN40 – DN300 Pressures up to 250 psi \| 1724 kPa \| 17 bar	Submittal
