StrengThin™ 100 System for Thin Wall Stainless Steel Pipe

THE INDUSTRY’S FIRST GROOVED MECHANICAL PIPING SYSTEM TO PERFORM UP TO 16 BAR ON THIN WALL STAINLESS STEEL PIPE

Request A Demo

STRENGTHIN™ 100

video library

REVOLUTIONIZING STAINLESS STEEL

For Thin Wall Stainless Steel Pipe

For Thin Wall Stainless Steel Pipe

Learn more

Join 1.6 to 4.5mm wall stainless steel pipe

· Eliminate the challenges of welding stainless steel

· Fast, clean and easy pipe joining

For Thin Wall Stainless Steel Pipe

Join 1.6 to 4.5mm wall stainless steel pipe

· Eliminate the challenges of welding stainless steel

· Fast, clean and easy pipe joining
No Need for Pickling or Passivating the Joint

No Need for Pickling or Passivating the Joint

Learn more

No chemical pipe treatment

· Clean and uniform joint quality

· No need for pickling or passivating

· No weakening of the pipe

· No risk of overheating the pipe

No Need for Pickling or Passivating the Joint

No chemical pipe treatment

· Clean and uniform joint quality

· No need for pickling or passivating

· No weakening of the pipe

· No risk of overheating the pipe
Increased Installation Speed

Increased Installation Speed

Learn more

Installation-Ready™ Technology is up to 10 times faster than when welding

· Less installation steps

· No disassembly, no loose parts

· Install in every weather condition

· Visual confirmation of a proper installation

Increased Installation Speed

Installation-Ready™ Technology is up to 10 times faster than when welding

· Less installation steps

· No disassembly, no loose parts

· Install in every weather condition

· Visual confirmation of a proper installation
Reduced Total Installed Cost

Reduced Total Installed Cost

Learn more

Minimize the factors that impact your budget

· Optimize crew size

· No cost for fire permit

· No highly qualified welder required

· Increase on-site efficiency

Reduced Total Installed Cost

Minimize the factors that impact your budget

· Optimize crew size

· No cost for fire permit

· No highly qualified welder required

· Increase on-site efficiency
New StrengThin™ 100 Groove Profile

New StrengThin™ 100 Groove Profile

Learn more

Unique new groove profile

· Increased coupling engagement

· No pipe flare possible

· Tool rental package available

New StrengThin™ 100 Groove Profile

Unique new groove profile

· Increased coupling engagement

· No pipe flare possible

· Tool rental package available
Reduce Labor Risk and Enhance Safety

Reduce Labor Risk and Enhance Safety

Learn more

Meet Your Deadline With Less Onsite Risk

· Consistent, fast joints

· Less installation steps

· No flames, no fumes

· Less chance of injury

Reduce Labor Risk and Enhance Safety

Meet Your Deadline With Less Onsite Risk

· Consistent, fast joints

· Less installation steps

· No flames, no fumes

· Less chance of injury

STRENGTHIN™ 100 SYSTEM PRODUCTS

  • All Products
  • Pipe Joining
  • Fittings
  • Flow Control
  • Tools
GDC-ST100 Groove Diameter Cable for StrengThin™ 100 System for Thin Wall Stainless Steel
GDC-ST100 Groove Diameter Cable for StrengThin™ 100 System for Thin Wall Stainless Steel
GDC-ST100 Groove Diameter Cable for StrengThin™ 100 System for Thin Wall Stainless Steel
  • Go/No-Go pocket-sized groove diameter cables are available for taking circumferential measurements on stainless steel pipe in sizes 2 - 12” | DN50 - DN300
  • GDC-STRENGTHIN100 cable should only be used to check roll grooved pipe conformance to Victaulic StrengThin™ 100 groove diameter specifications
RG3600 StrengThin™ 100 Roll Grooving Tool
RG3600 StrengThin™ 100 Roll Grooving Tool
RG3600 StrengThin™ 100 Roll Grooving Tool
  • Portable light-weight field roll grooving tool. Supplied with StrengThin™ 100 roll sets
  • Regional availability, contact Victaulic for details
Series 461/Series E461 Vic-300™ MasterSeal™ Stainless Steel Butterfly Valve
Series 461/Series E461 Vic-300™ MasterSeal™ Stainless Steel Butterfly Valve
Series 461/Series E461 Vic-300™ MasterSeal™ Stainless Steel Butterfly Valve
  • Sizes from 2 – 12″/DN50 – DN300
  • Series 461: Features Original Groove System (OGS) grooved ends
  • Series E461: Features StrengThin™ 100 grooved ends
  • Pressures up to 300 psi | 2068 kPa | 21 bar
  • Designed for bi-directional, dead-end services to full working pressure
  • Available without handle, with gear operator, with lever lock handle and memory stop or with 10-position handle and memory stop
StrengThin™ 100 Fittings for Thin Wall Stainless Steel
StrengThin™ 100 Fittings for Thin Wall Stainless Steel
StrengThin™ 100 Fittings for Thin Wall Stainless Steel
  • Sizes from 2 - 12" | DN50 - DN300
  • Fitting pressure ratings are equivalent to the coupling joint pressure rating of the Victaulic StrengThin™ 100 coupling used to install them
  • Designed for thin wall stainless steel pipe

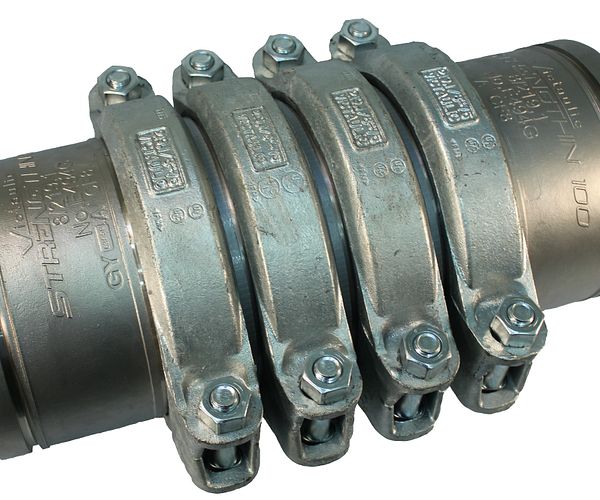

Style E155 StrengThin™ 100 Expansion Joint
Style E155 StrengThin™ 100 Expansion Joint
Style E155 StrengThin™ 100 Expansion Joint
  • Designed for thin wall stainless steel pipe
  • Style E155 expansion joints are rated to the working pressure of the coupling used
  • Sizes from 2 - 12" | DN50 - DN300
  • Regional availability - contact Victaulic for details
Style E497 StrengThin™ 100 Rigid Coupling for Stainless Steel
Style E497 StrengThin™ 100 Rigid Coupling for Stainless Steel
Style E497 StrengThin™ 100 Rigid Coupling for Stainless Steel
  • Designed for thin wall stainless steel pipe
  • Sizes from 2 - 12"” | DN50 - DN300
  • Pressures up to 232 psi | 1600 kPa | 16 bar
  • Regional availability, contact Victaulic for details
Series 416/E416 Stainless Steel Check Valve
Series 416/E416 Stainless Steel Check Valve
Series 416/E416 Stainless Steel Check Valve
  • Sizes from 2 - 12″ | DN50 - DN300
  • Pressures up to 300 psi | 2068 kPa | 21 bar
  • Series 416: Features Original Groove System (OGS) grooved ends
  • Series E416: Features StrengThin™ 100 grooved ends
  • Resilient-seat spring return swing check valve designed for horizontal or vertical (upward flow) applications
Series E125 StrengThin™ 100 Installation-Ready™ Butterfly Valve for Stainless Steel
Series E125 StrengThin™ 100 Installation-Ready™ Butterfly Valve for Stainless Steel
Series E125 StrengThin™ 100 Installation-Ready™ Butterfly Valve for Stainless Steel
  • Exclusively for use on thin wall stainless steel pipe which features Victaulic’s proprietary StrengThin™ 100 groove profile
  • Designed for bi-directional service to full working pressure
  • Available with multiple handle options
  • Sizes from 2 – 8″ | DN50 – DN200
  • Pressures up to 232 psi | 1600 kPa | 16 bar
  • Regional availability, contact Victaulic for details
Series E431 StrengThin™ 100 Suction Diffuser
Series E431 StrengThin™ 100 Suction Diffuser
Series E431 StrengThin™ 100 Suction Diffuser
  • Exclusively for use on thin wall stainless steel pipe which features Victaulic’s proprietary StrengThin™ 100 groove profile
  • Allows piping assembly at a 90 angle from the pump, saving valuable space in the mechanical room while minimizing cavitation
  • Available flanged connections: PN10/PN16
  • Sizes DN65 x DN50 through DN300 x DN250
  • Pressures up to 232 psi | 1600 kPa | 16 bar
  • Regional availability, contact Victaulic for details

STRENGTHIN™ 100 SYSTEM DOWNLOADS

  • All Resources
  • Submittal
  • Manuals
  • Technical & Design Data
  • Market Brochure
Resource Number Downloads Collection
StrengThin™ 100 System Brochure PB-E497
StrengThin™ 100 Roll Groove Specifications 25.13
RG3600 StrengThin™ Roll Grooving Tool Manual TM-RG3600
StrengThin™ 100 Roll Groover Model RG3600 Submittal 24.08
Accomodating Pipe Line Thermal Growth for StrengThin™ 100 Piping Systems for Thin Wall Stainless Steel Pipe 31.08
Vic-300 MasterSeal™ Stainless Steel Butterfly Valve – Series 461/E461 Submittal 17.40
Style E497 Installation-Ready™ Rigid Coupling for the StrengThin™ 100 System Installation Instructions I-E497
StrengThin™ 100 System – Style E497 Rigid Coupling for Stainless Steel Submittal 31.02
StrengThin™ 100 System – Style E155 Expansion Joint Submittal 31.07
StrengThin™ 100 System – Fittings for Stainless Steel Pipe Submittal 31.04
Stainless Steel Check Valve – Series 416/E416 Submittal 17.41
Gasket and Seal Selection Guide 05.01
StrengThin™ 100 System Style E485 Rigid Coupling for Stainless Steel (Taiwan Only) Installation Instructions I-E485
StrengThin™ 100 System Style E485 Rigid Coupling for Stainless Steel (Taiwan Only) Submittal 31.11
Series E125 StrengThin™ 100 Installation-Ready™ Butterfly Valve for Stainless Steel Submittal 31.05
Series E431 StrengThin™ 100 Suction Diffuser Submittal 31.10
Series E125 Strengthin™ 100 Butterfly Valve Installation Instructions I-120
