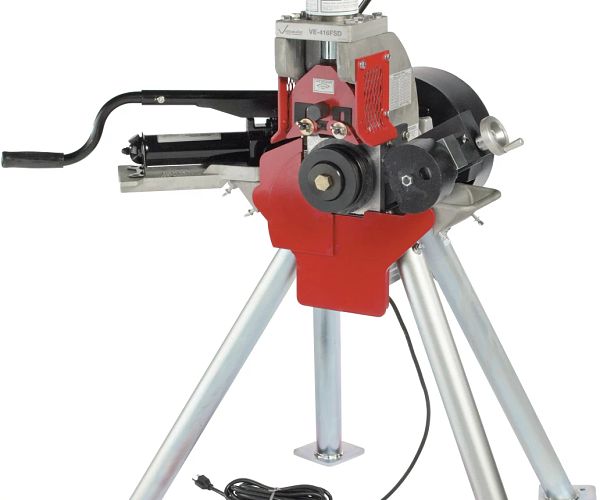

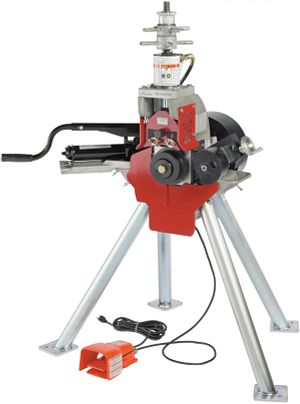

VE416FSD/VE417FSD Roll Grooving Tool

VE416FSD/VE417FSD is designed for field grooving of OGS pipe and should not be used for continuous field production grooving; For field production grooving capabilities, use a VE450FSD tool, see pg. 102
Groove depth adjuster allows for easy adjustment for initial groove diameter
Completely self-contained units with integral gear motors, safety foot switch and power cord/plug
The fully-motorized, semi-automatic, electrohydraulic tool comes complete with safety guards and safety foot switch
Power Requirements: VE416FSD is provided with 110 volt, 15 amp for integral gear motor; VE417FSD is provided with 220 volt, 8 amp service
Weight: 340 lbs. | 154 kg

Resources

Browse manuals and submittal forms.

Resource	Number	Downloads	Collection
Pipe Preparation Tools Submittal	24.01	english french-france german spanish-latin-america	english french-france german spanish-latin-america
Style 416FS/FSD Field Fabrication Roll Grooving Tool Installation Instructions	TM-VE416FS-FSD	english chinese-simplified dutch french-france german italian polish romanian spanish-latin-america	english chinese-simplified dutch french-france german italian polish romanian spanish-latin-america
Style VE416FS/FSD Field Fabrication Roll Grooving Tool Upgrade Kit Manual	TM-VE416FS_FSD_Kit	english	english
Style VE416FS Roll Grooving Tool Repair Parts Manual	RP-VE416FS_FSD	english	english
